Microscopy (required practical): Cell biology

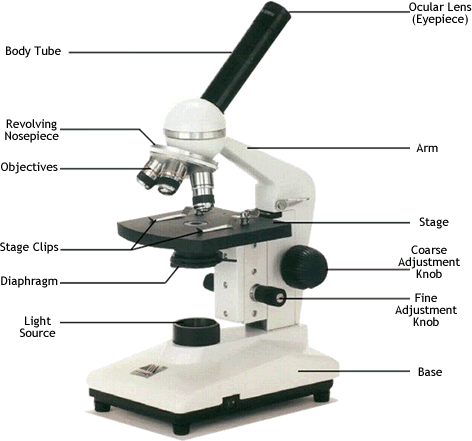

• Light microscope


  Equipment which uses visible light to detect and magnify small objects


• Magnification


  How much an image appears to have increased in size by

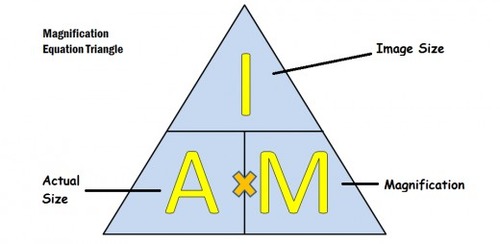

• Magnification equation


  Magnification = size of image/size of real object


• Image size


  The size of an object on an image after magnification


• Actual size


  The actual or real size of an object before magnification


• Total magnification


  The overall magnification in a light microscope due to the combined magnification of the eyepiece lens and the objective lens

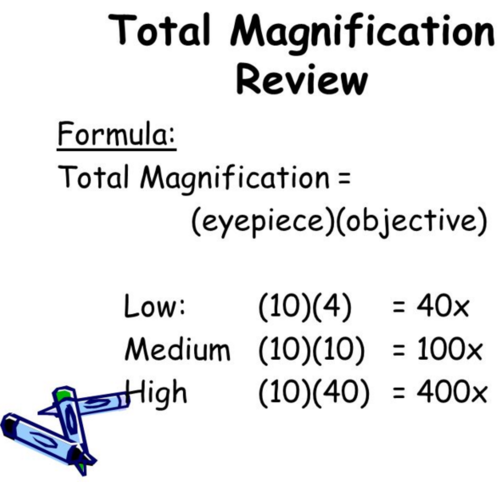

• Total magnification equation


  Total magnification = eyepiece lens magnification x objective lens magnification
• Eyepiece lens


  The lens that is closest to the eye when viewing a microscope

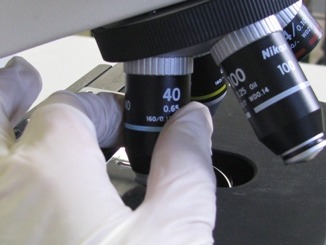

• Objective lenses


  A set of lenses above the stage that can be manually adjusted to provide a higher magnification


• Magnification scale


  A scale bar on an image that represents the actual size of an object


• Graticule

  A scale with many divisions that is printed on to the eyepiece lens to measure an object's size

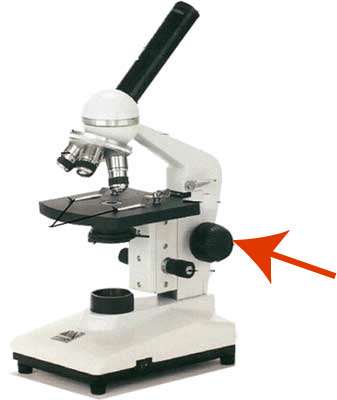

• Focusing wheel


  A twistable wheel that adjusts the focus of an object by changing the height of the microscope stage

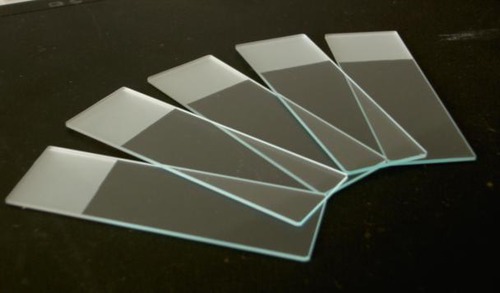

• Microscope slide


  A thin piece of glass that holds biological specimens to be observed under a microscope

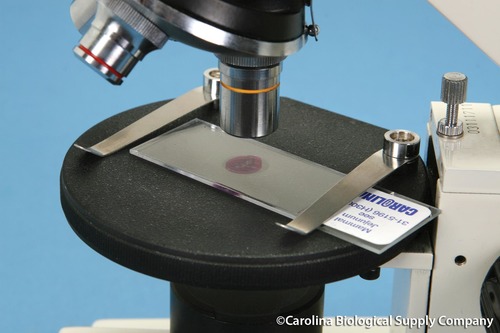

• Microscope stage


  Where the microscope slide is placed and help in place with stage clips


• Field of view


  The maximum diameter or area that is visible when looking through a microscope eyepiece


• Onion cells


  An easily obtainable source of plant cells


• Cheek cells


  An easily obtainable source of animal cells


• Iodine solution


  An orange-brown dye that can be used to stain onion cells to make them easily observable


• Methylene blue


  A blue dye that can be used to stain cheek cells to make them easily observable
