Microscopy and magnification: Cell biology: Biology

• Light microscope


  Equipment which uses visible light to detect and magnify small objects

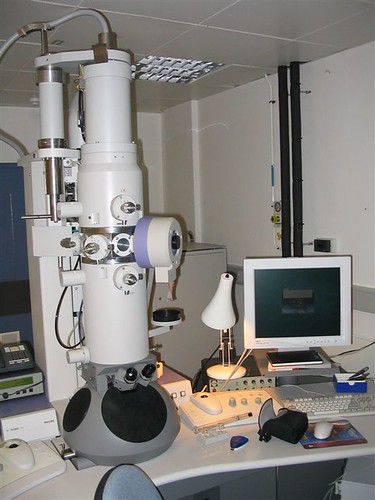

• Electron microscope


  Equipment which uses electron beams to produce images with higher magnification and resolution


• Magnification


  How much an image appears to have increased in size by


• Resolution


  The degree of detail visible in an image

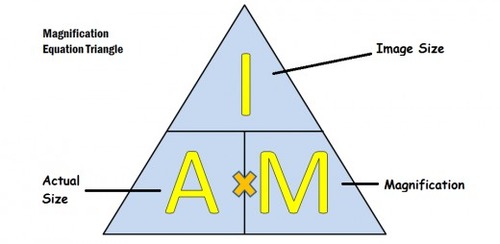

• Magnification equation


  Magnification = size of image/size of real object

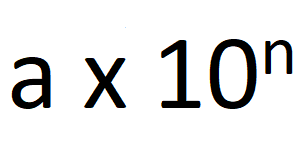

• Standard form


  A system where numbers are expressed as decimals between 1 and 10 and multiplied by a power of 10


• Centi


  A prefix meaning one hundredth of a unit


• Milli


  A prefix meaning one thousandth of a unit


• Micro


  A prefix meaning one millionth of a unit


• Nano

  A prefix meaning one thousand-millionth of a unit


• Image size


  The size of an object on an image after magnification


• Actual size

  The actual or real size of an object before magnification

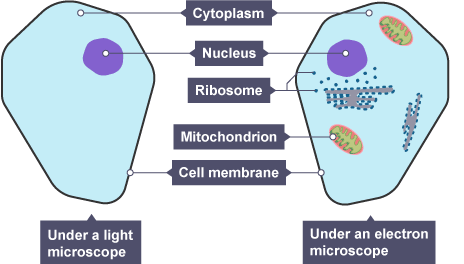

• Sub-cellular structures


  Structures or organelles that are found in the cell
