Structures

• Structure of proteins


  •Polymer of amino acids

  •Joined by a peptide bond

  •Formed by condensation

  •1st structure - Polymer of a specific order of amino acids

  •2nd structure - polypeptide chain folds into either a A helix or B pleated sheets

  •3rd structure - the polypeptide chain folds further into a specific 3D structure
• Cellulose structure


  Neatly stacked long chains

  Made up of B glucose

  Connected by hydrogen bonds

  Found in cell walls to give strength and structure to a cell

  Indigestible
• Functions and Properties of both Glycogen and Starch (6)


  Main role = energy storage compound , G in animals , S In plants

  Insoluble = doesn't affect wall pressure

  Branched /helical = compact , can fit into a small space

  Polymer of A glucose = provides glucose for respiration

  Branched = many ends for enzymes to attach and hydrolyze

  Large = cannot leave the cell
• Structure of Starch (3)

  Polysaccharide of A glucose

  1,4 1,6 glycocidic bonds

  Branches and coiled shape held by hydrogen bonds within the mollecule
• Structure of Glycogen (4)

  Polysaccharide of A glucose

  Branched and coiled shape held by Hydrogen bonds within the molecule

  1,4 1,6 glycacidic bonds

  Mostly 1,6 glycacidic bonds to give it a larger surface area

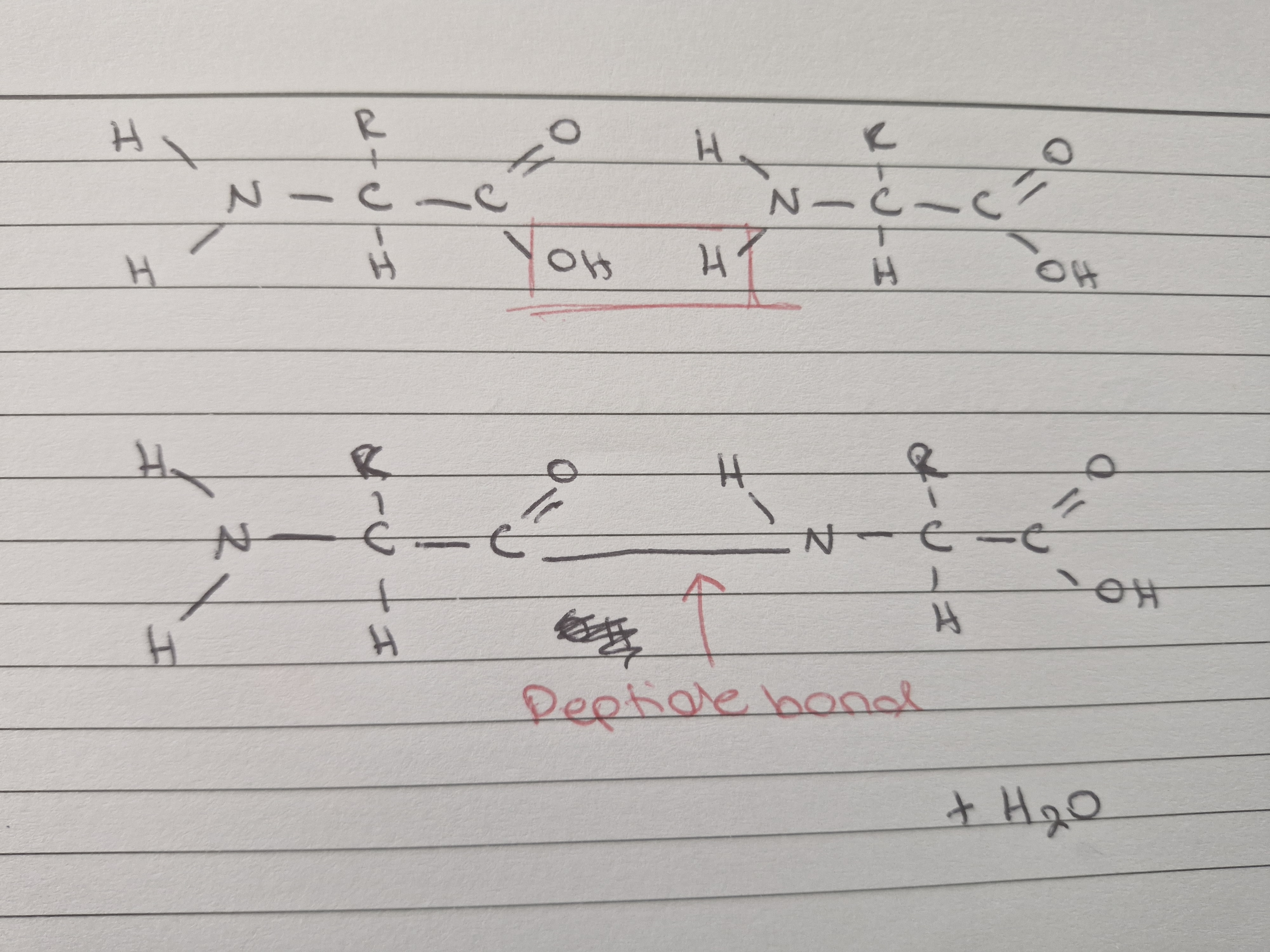

• Dipeptide structure


  .


• Condensation of Sucrose


  .

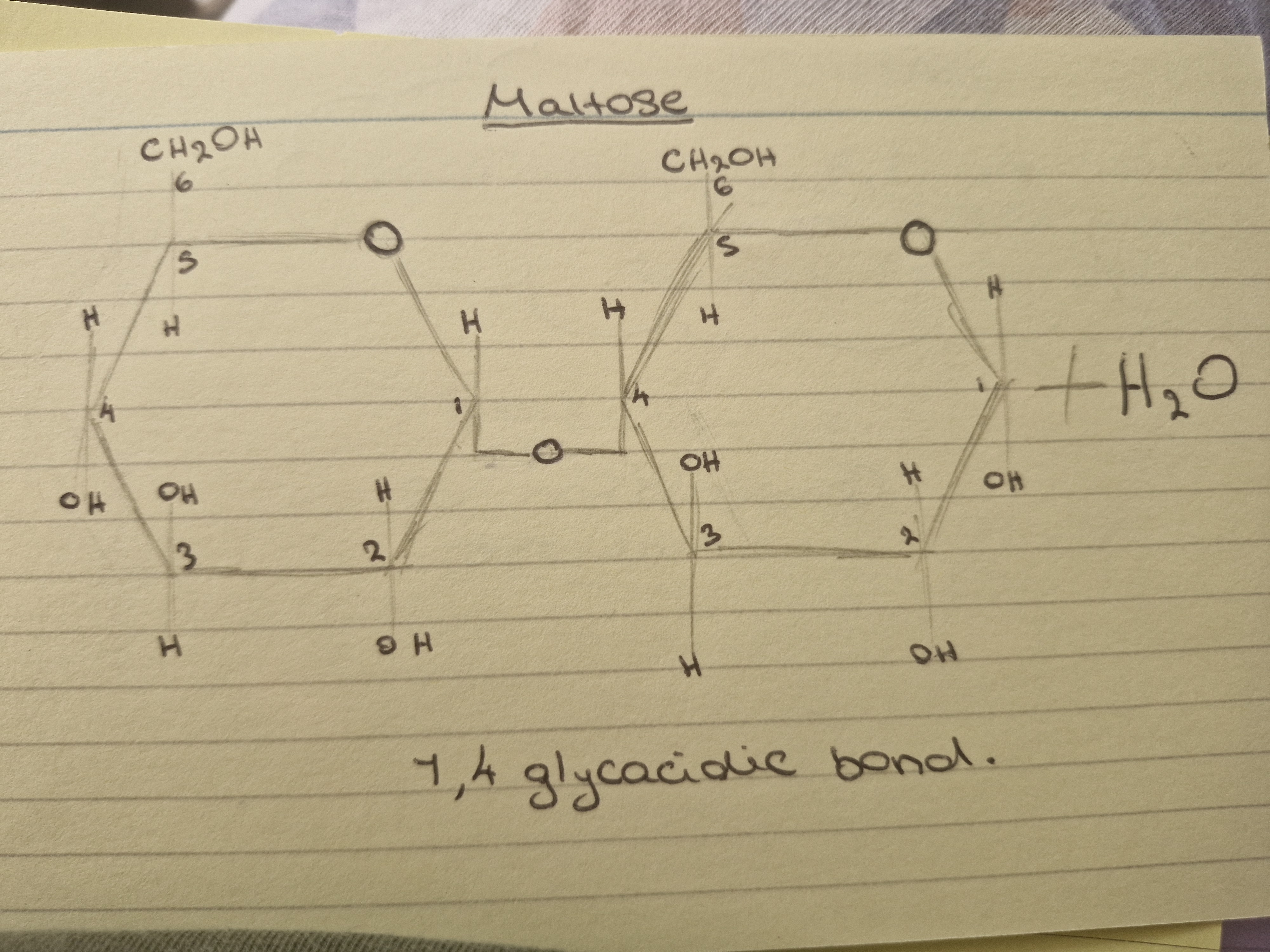

• Condensation of maltose

  .


• Condensation of lactose

  .

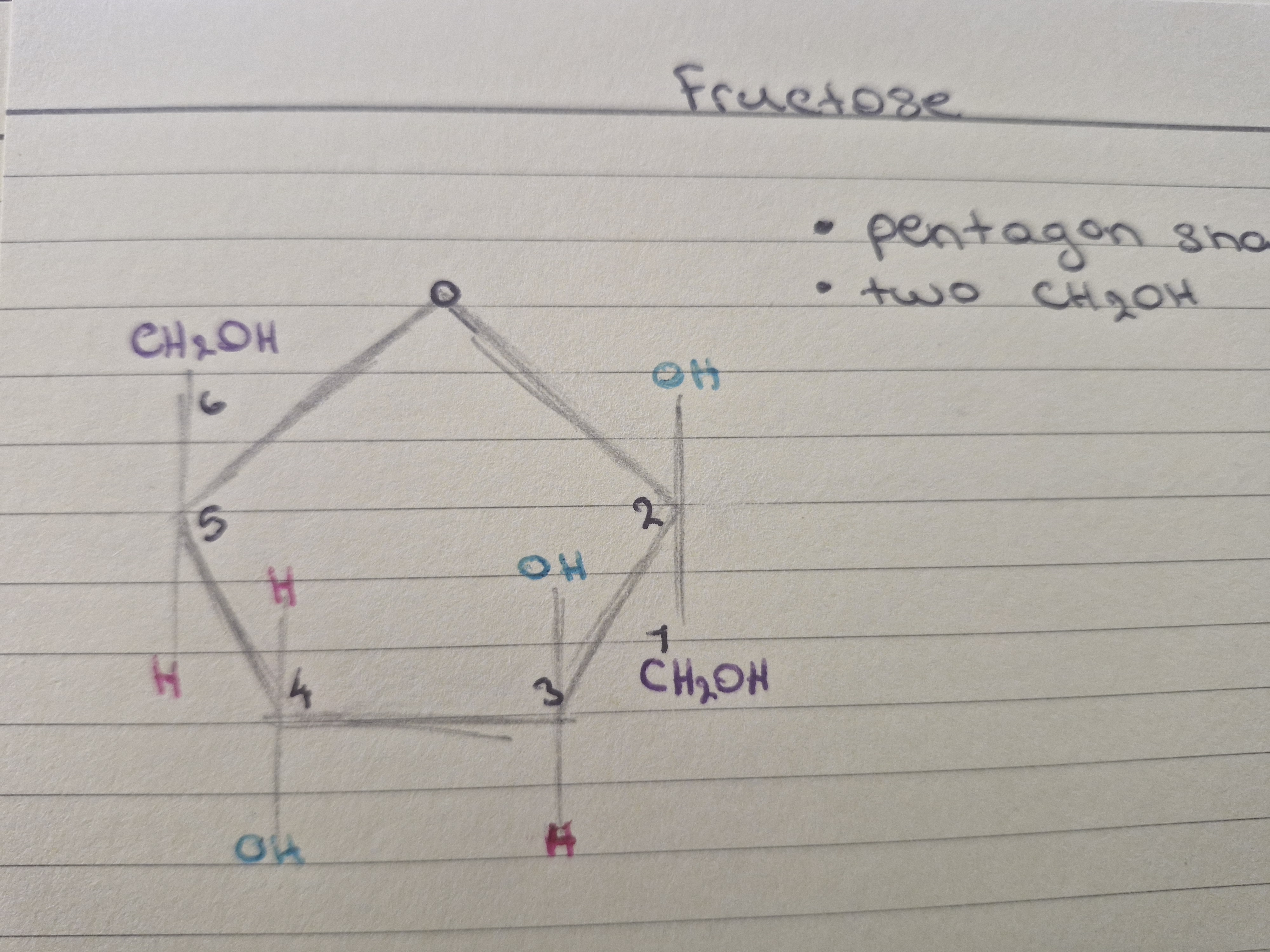

• Fructose molecule


  .


• A Glucose


  .

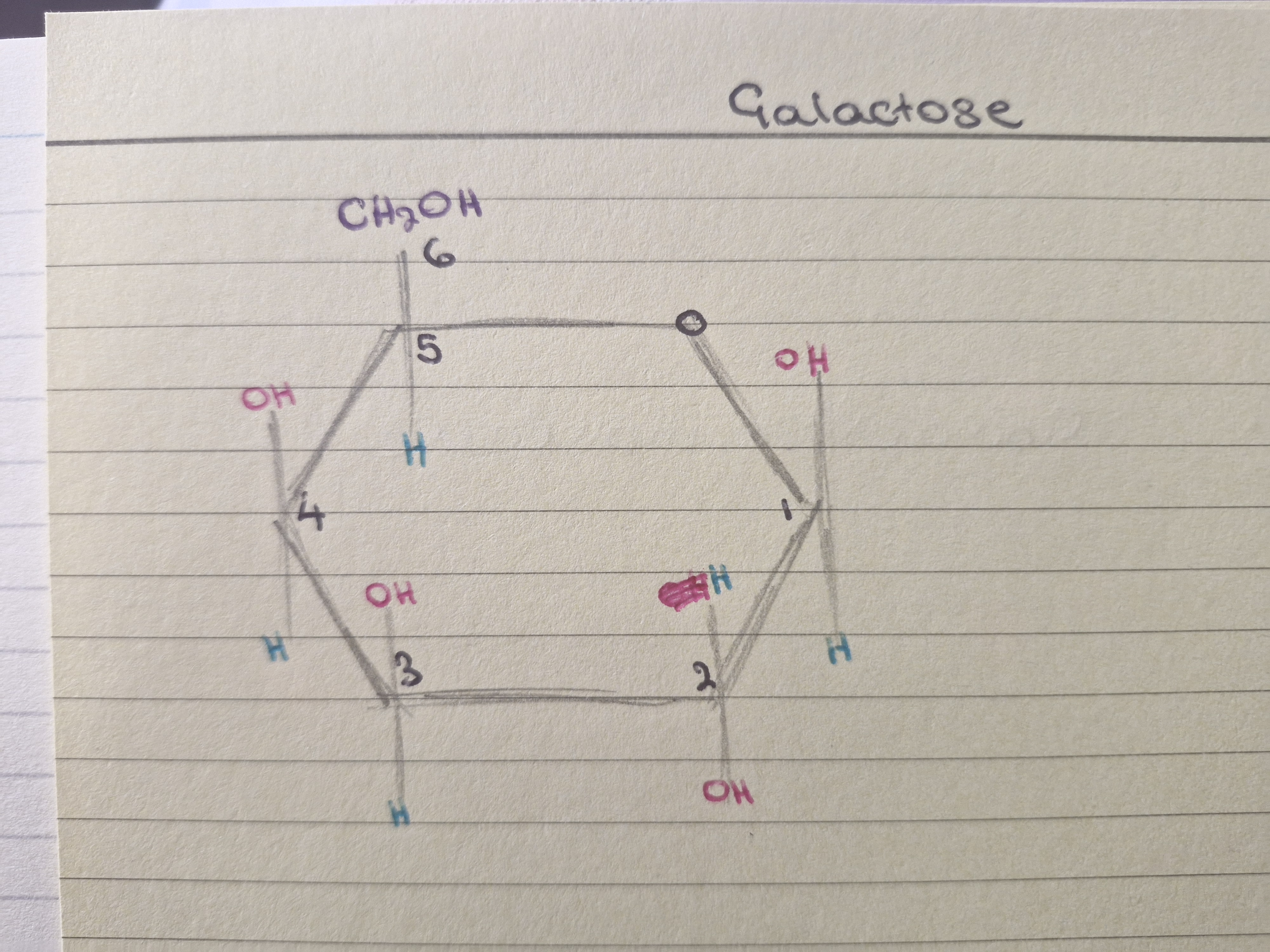

• Galactose molecule


  .

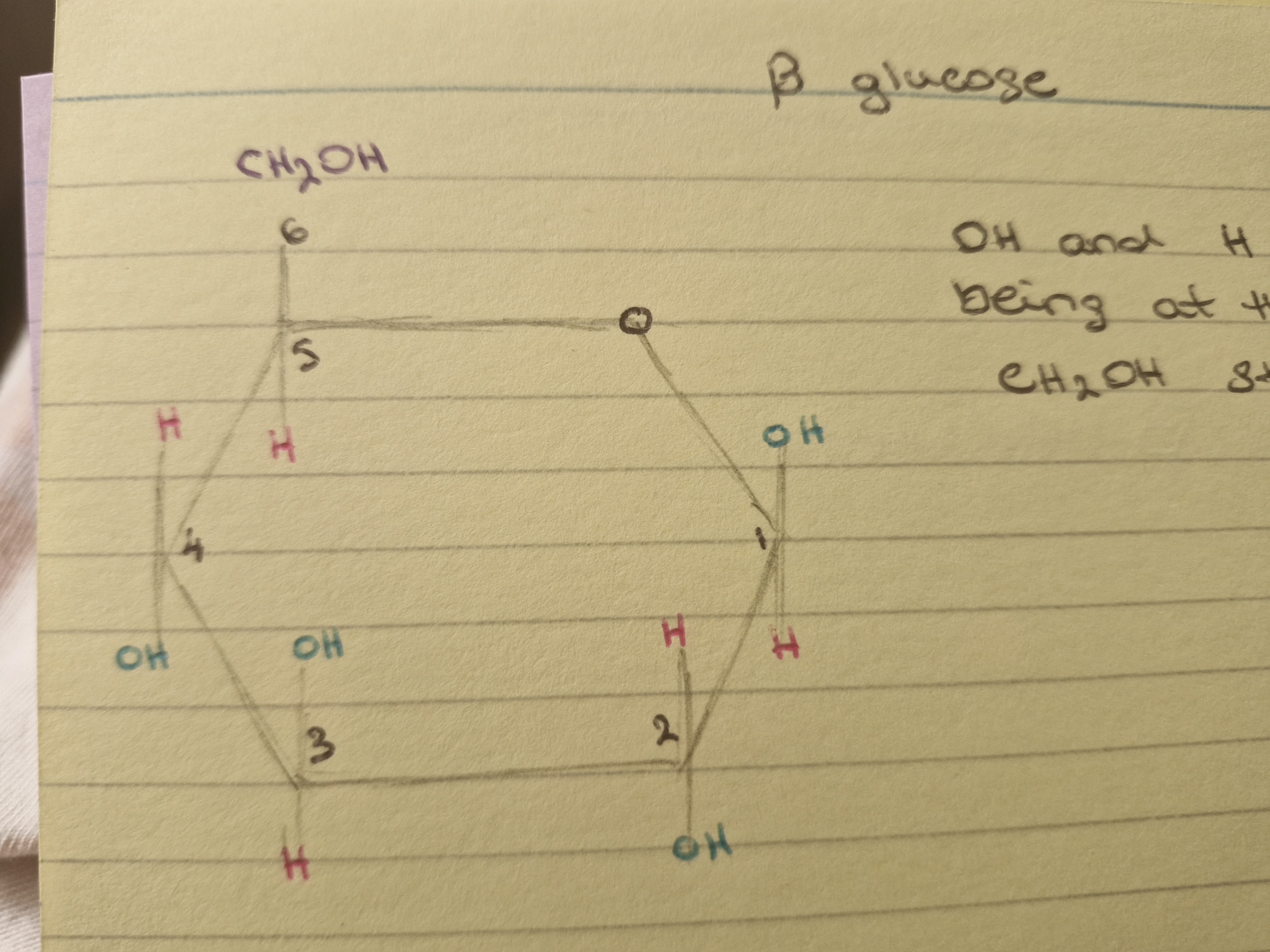

• B Glucose


  .

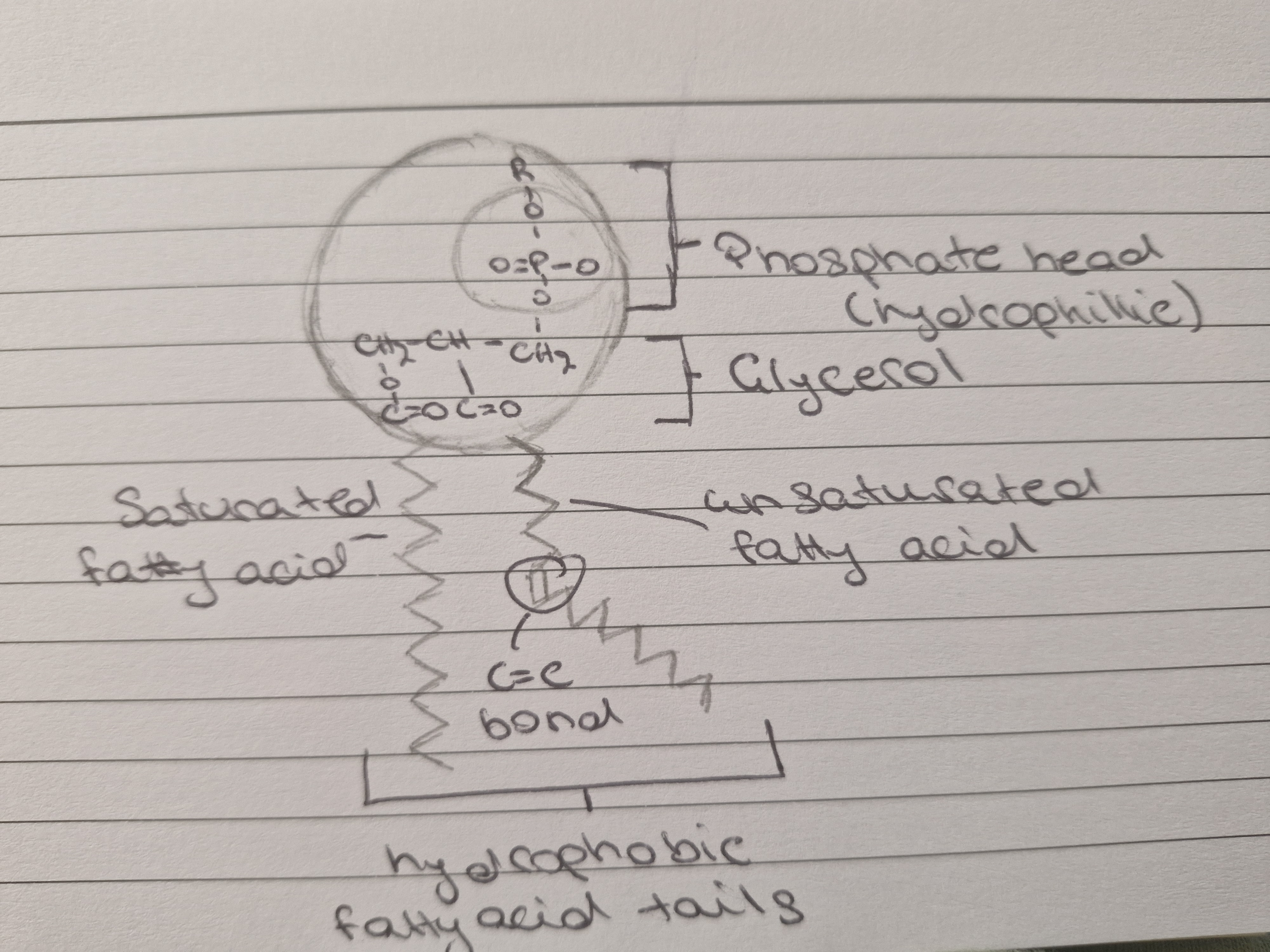

• Phospholipid structure


  .

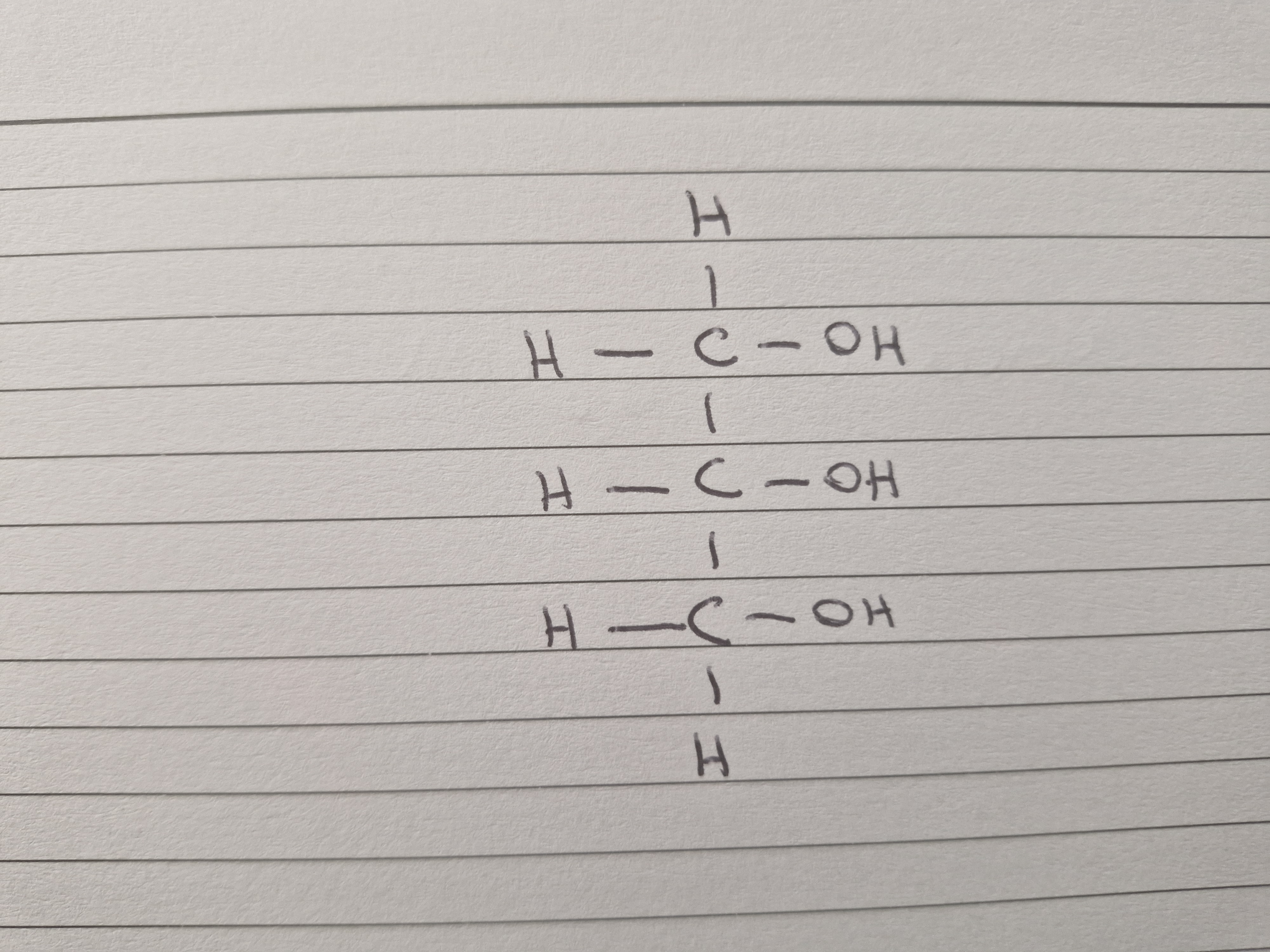

• Molecule of Glycerol


  .

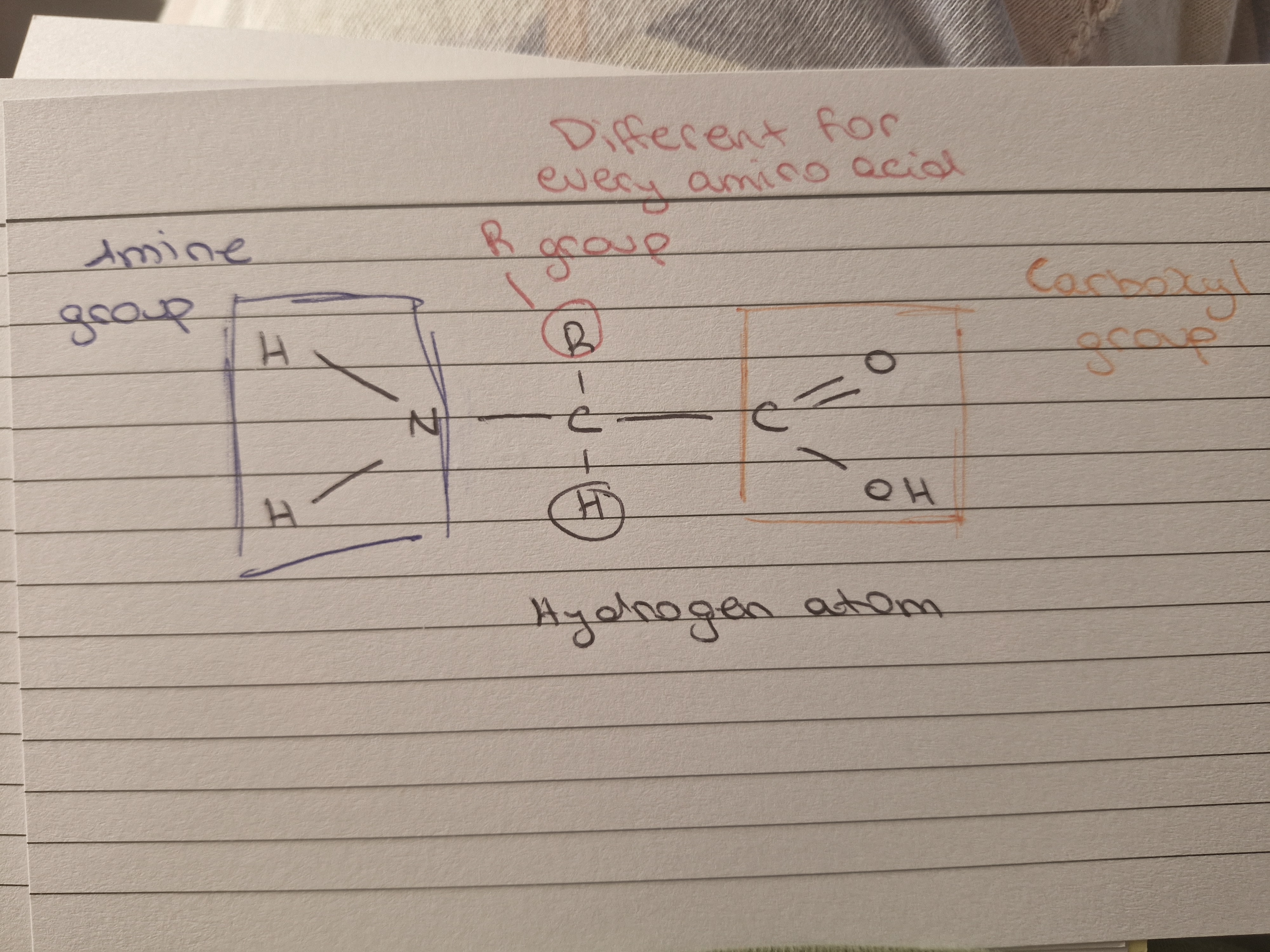

• Structure of an amino acid


  .

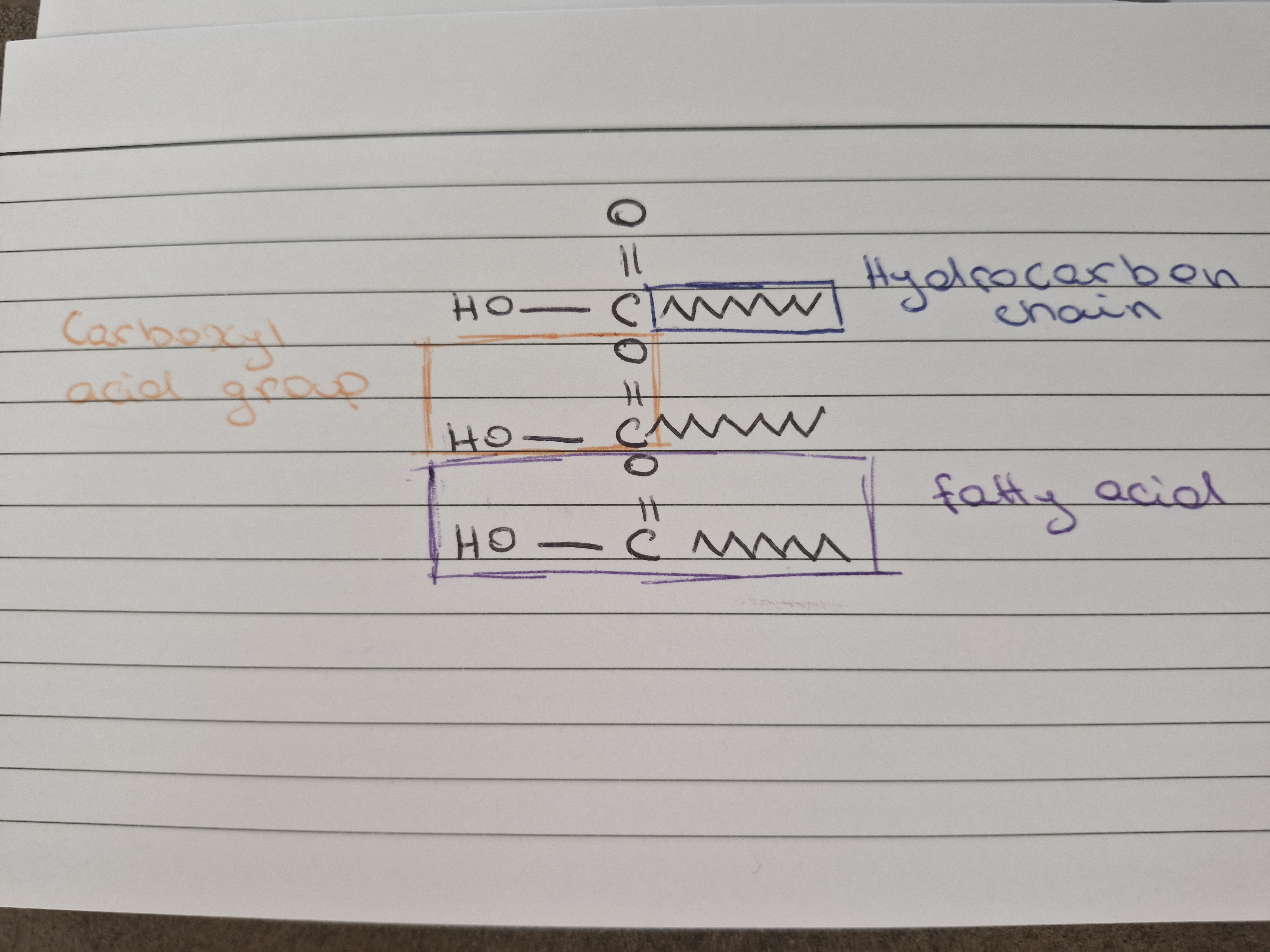

• Molecule of a fatty acid


  .

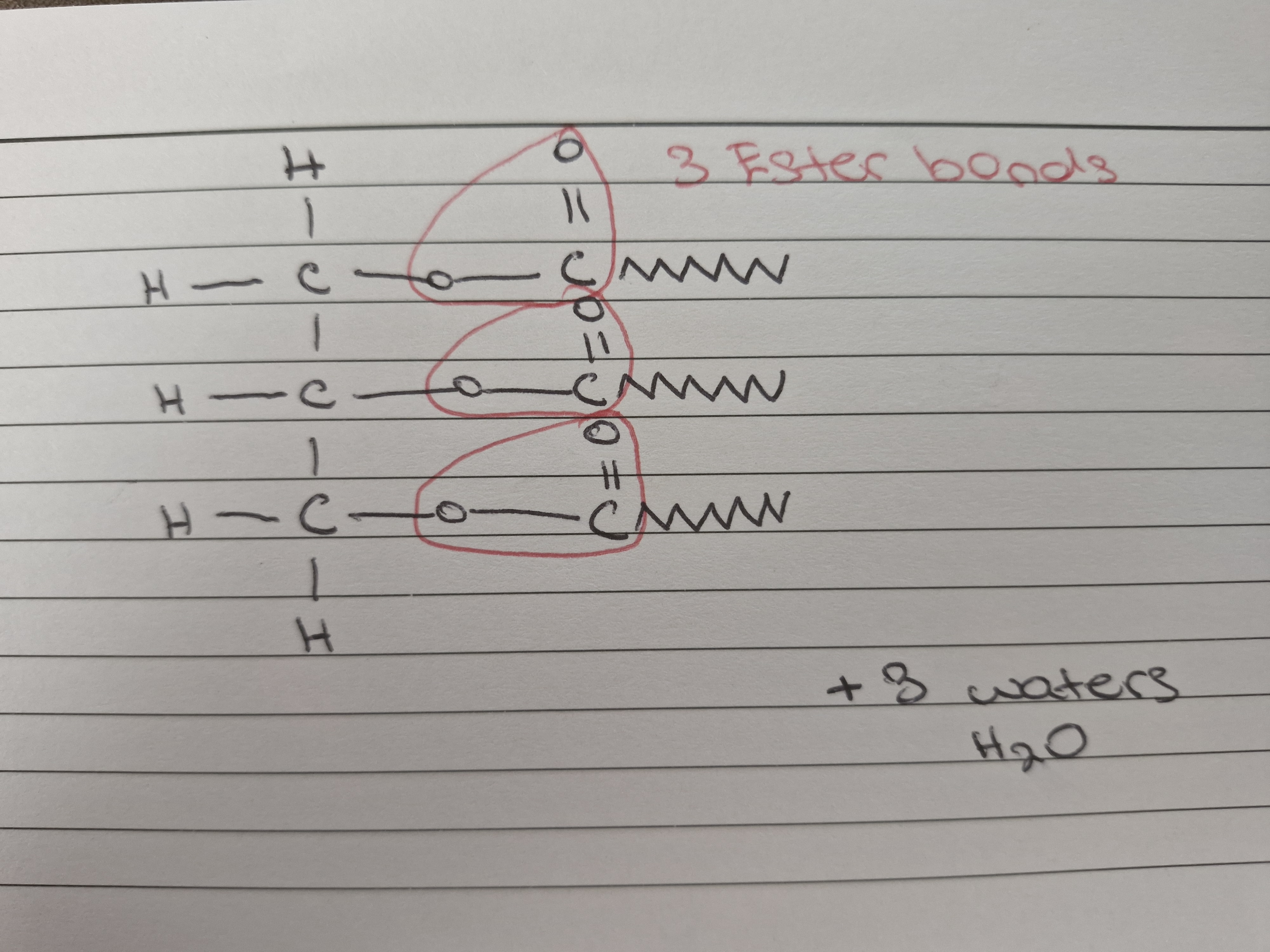

• Condensation of a triglyceride


  .
