What magnets are and drawing magnetic field lines

• What is a magnet?


  A magnet is any material or object that produces a magnetic field.
• What is the most common type of magnet mentioned?

  The most common type of magnet is the bar magnet.
• What do all magnets have in common?


  All magnets have two poles: a north and a south pole.

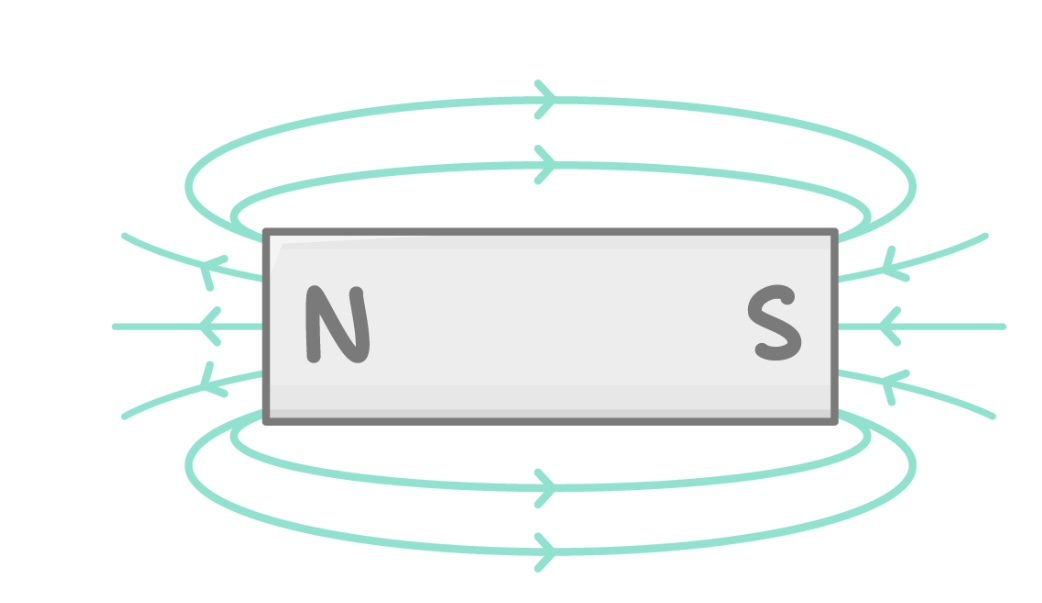

• How should you draw field lines for a magnet?


  You should draw at least one straight line going into the south pole and coming out of the north pole.
• What do the density of field lines indicate?

  The density of field lines indicates the relative strength of the magnetic field; closer lines mean a stronger field.
• What happens to the magnetic field strength near the north pole of a magnet?


  The magnetic field is much stronger near the north pole than further away.
• How can we find the poles of a magnet in real life?

  We can find the poles of a magnet by using a compass, as the needle will align with the magnetic field.
• What does the compass needle point towards?


  The compass needle points towards the south pole of a magnet.
• How do you recreate the pattern of field lines using a compass?


  You can recreate the pattern by placing the compass in different locations and drawing arrows in the direction of the needle.
• What is the interaction between two like poles of magnets?


  • Like poles (north-north or south-south) repel each other.
  • This repulsion makes it hard to push them together.
• What happens when opposite poles of magnets are brought together?


  • Opposite poles (north-south) attract each other.
  • This attraction occurs because field lines go from north to south.
• How does the interaction of magnetic fields create force?


  The interaction of the magnetic fields creates a force of repulsion or attraction depending on the poles involved.
• What is the purpose of field lines in representing magnetic fields?


  Field lines show where the magnetic field is, its direction, and its relative strength.
• How are magnetic fields represented?

  Magnetic fields are represented using field lines that are drawn from the north pole to the south pole.

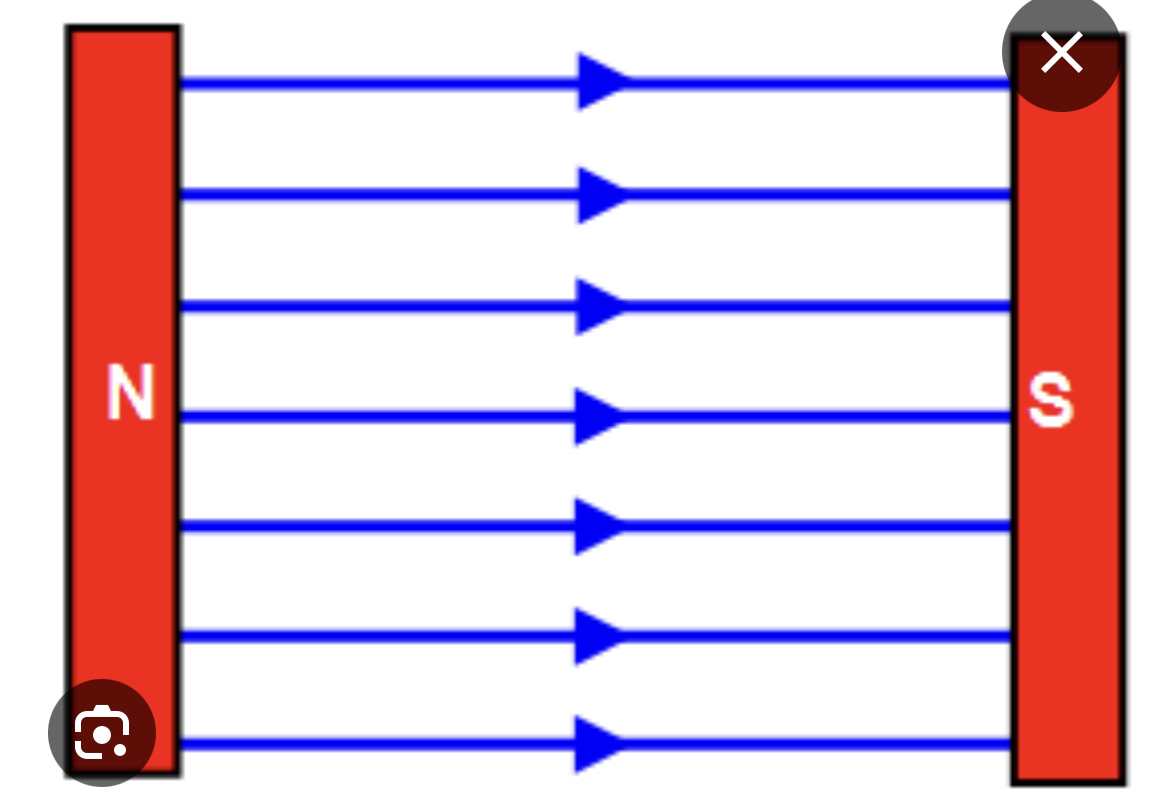

• How are uniform magnetic field lines formed?

  a uniform magnetic field is between the opposite poles of two magnets

  placed close together, as the field lines move from the north pole of one straight

  towards the south pole of the other. The field lines are parallel and evenly spaced.
