Circuit Symbols

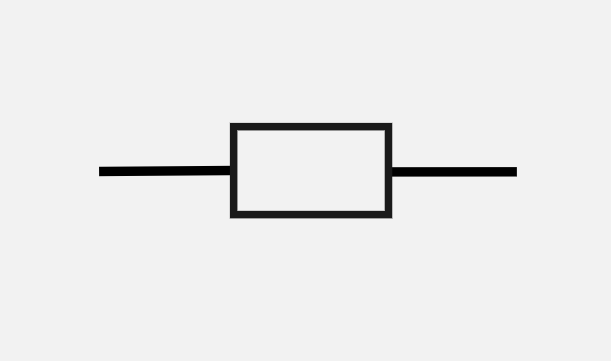

• Resistor - restricts or limits the flow of electrical current.

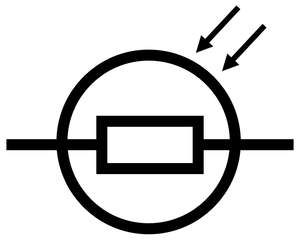

• LDR - the resistance depends on light intensity, as light intensity increases, resistance decreases.

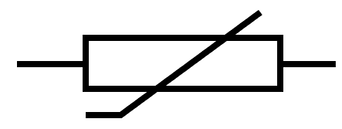

• Thermistor - the resistance is dependant on temperature, as the temperature increases, the resistance decreases.

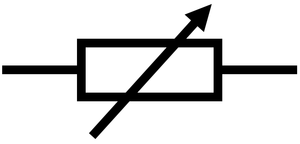

• Variable resistor - moving the position of the slider on the resistor changes the resistance.


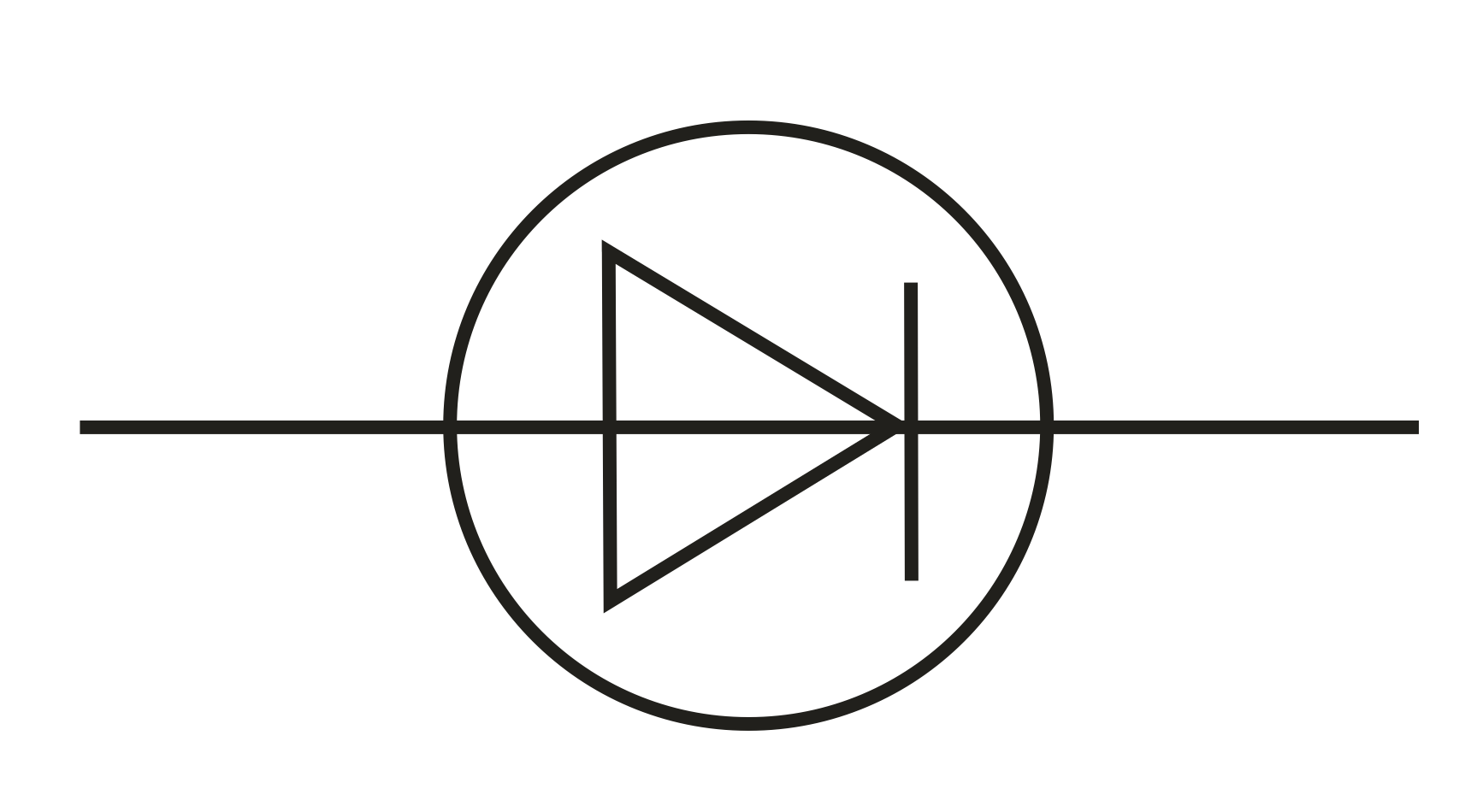

• Diode - allows current to flow in one direction only, has a high resistance in the other direction.
