Von Neumann & Harvard Architecture

• What is Computer Architecture?

  • A computer architecture describes how it uses the components and instructions to make the computer function
  • There are 2 common types of computer architecture:
  • Von Neumann architecture
  • Harvard architecture

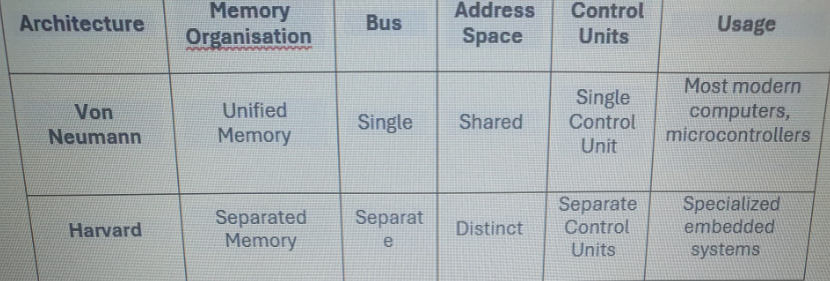

• Von Neumann vs Harvard Architecture

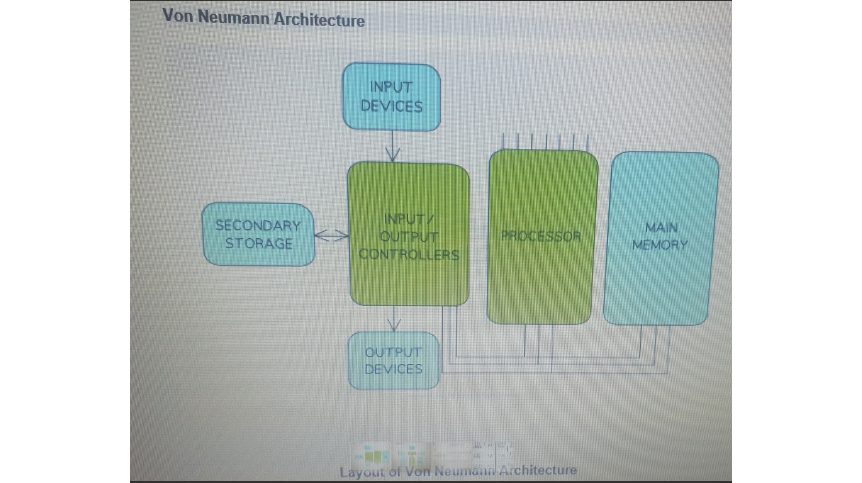

• Von Neumann


• Von Neumann's architecture includes:

  - Control Unit

  - Arithmetic Logic Unit

  - Special Registers

  - Busses

  - Random Access Memory
• Von Neumann - Control Unit (CU)

  • The control unit controls the operation of the processor and its components
  • It retrieves instructions stored in memory, decodes or interprets them, and then executes them
  • The CU generates timing signals and controls the other units of the computer
• Von Neumann - Arithmetic Logic Unit (ALU)

  • The ALU carries out all the arithmetic and logic operations in the computer such as:
  • Addition
  • Subtraction
  • Multiplication
  • Division
  • Comparisons
• Von Neumann - Buses

  • A single set of buses to connect the CPU to memory and Input/Output
  • These are communication systems that transfer data between the components inside a computer, or between computers
  • There are 3 types of buses:
  • The data bus carries data
  • The address bus carries the addresses where data must be picked up or stored
  • The control bus carries signals relating to the control and coordination of all the activities within the computer
• Von Neumann - Memory (RAM)

  • The memory unit stores both data and instructions for processing
  • These are stored in the same format
  • The memory is divided into cells, each of which can be accessed by their address
  • The memory is a linear or sequential array of bytes

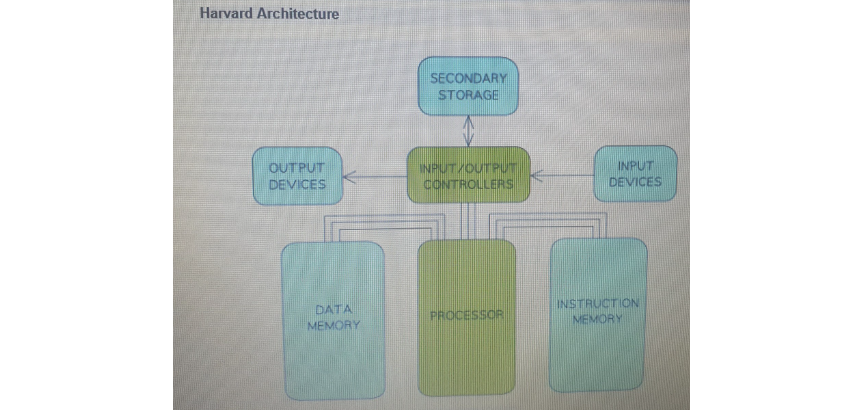

• Harvard Architecture


• Harvard architecture includes:

  • Separate Instruction and Data Memory
  • Separate Instruction and Data Buses
  • Control Unit (CU)
  • Arithmetic Logic Unit (ALU)
• Harvard Architecture - Separate Instruction and Data Memory

  • In Harvard architecture, the system has separate memory units for storing data and instructions
  • This separation provides greater speed and efficiency as the system can fetch data and instructions simultaneously from separate buses, without one interfering with the other
• Harvard Architecture - Separate Instruction and Data Buses

  • Harvard architecture uses separate buses for data and fetching instructions, meaning that data transfers do not interfere with instruction fetches
  • This can lead to better overall system performance
• Harvard Architecture - Control Unit (CU)

  • The control unit controls the operation of the processor and its components
  • It retrieves instructions stored in memory, decodes or interprets them, and then executes them
  • The CU generates timing signals and controls the other units of the computer
• Harvard Architecture - Arithmetic Logic Unit (ALU)

  • The ALU carries out all the arithmetic and logic operations in the computer such as:
  • Addition
  • Subtraction
  • Multiplication
  • Division
  • Comparisons

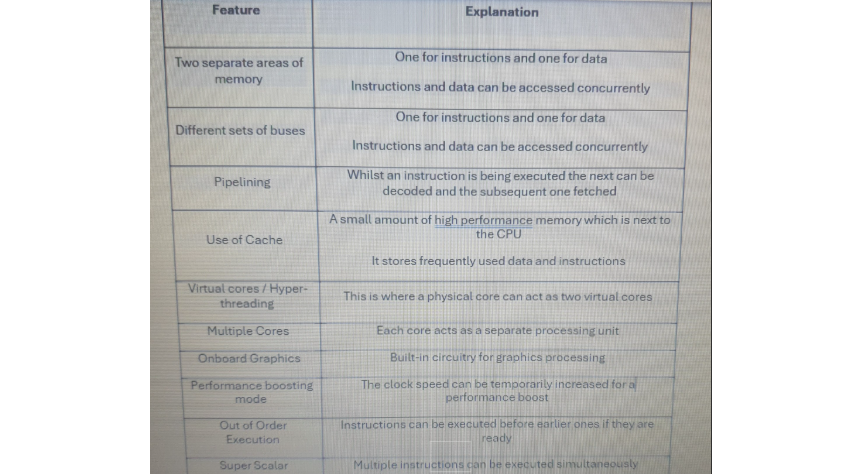

• How does Harvard Architecture improve performance over Von Neumann Architecture?

  There are several things that Harvard architecture has or can do which can improve performance over Von Neumann architecture:
