Pipelining

• What is Pipelining?

  • Pipelining is the process of carrying out multiple instructions concurrently
  • Each instruction will be at a different stage of the fetch-decode-execute cycle
  • One instruction can be fetched while the previous one is being decoded and the one before is being executed
  • In the case of a branch, the pipeline is flushed

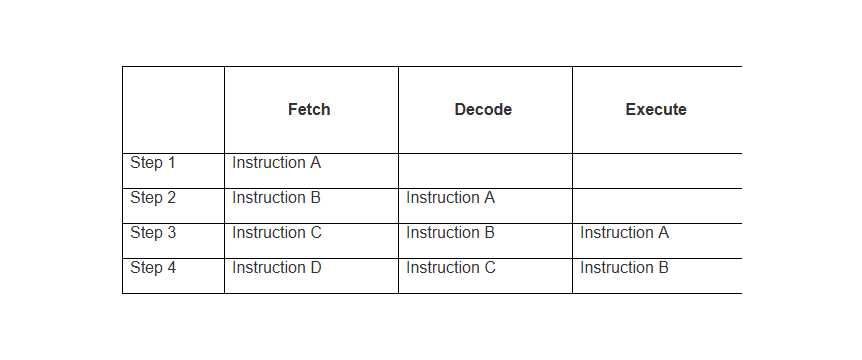

• This table shows which stage each instruction is at during each step:




  While one instruction is being executed, the next instruction will be decoded and the following instruction will be fetched


• How Does Pipelining Improve Processor Performance?

  • Pipelining reduces latency
  • The CPU is not idle while waiting for the next instruction which increases the speed of execution
  • The next instruction is fetched while the current one is decoded/executed
  • All parts of the processor can be used at any instance in time
