Components of the CPU

• What is the CPU?

  • The CPU is responsible for processing all data within the computer
  • It is made up of a number of components including:
  • Arithmetic and Logic Unit (ALU)
  • Control Unit (CU)
  • Registers are temporary storage/memory locations inside the CPU which are used for a single specific purpose. They have a faster access speed than RAM / secondary storage. There are a number of registers in the CPU:
  • Program Counter (PC)
  • Accumulator (ACC)
  • Memory Address Register (MAR)
  • Memory Data Register (MDR)
  • Current Instruction Register (CIR)

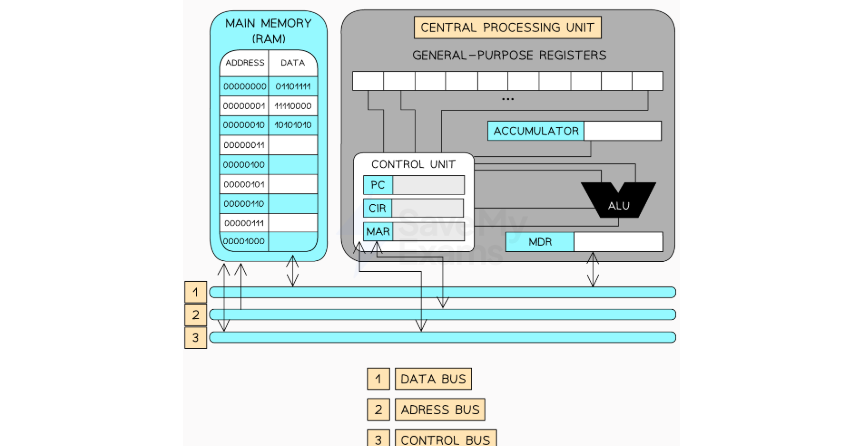

• Components of the CPU


• Arithmetic and Logic Unit (ALU)

  - This performs any arithmetic calculations (e.g. adding binary) or any logic comparisons (using AND, OR, NOT)

  - The ALU is made up of several components
• Control Unit

  This is where instructions are decoded. The CU also controls the data within the CPU and how it moves around
• Program Counter (PC)

  This stores the address in memory of the next instruction to be fetched
• Accumulator (ACC)

  This is where values are stored temporarily, either after they’ve been inputted or loaded, or after being calculated in the ALU
• Memory Address Register (MAR)

  This is where addresses are stored, either for where data is being sent in memory, or where it is being fetched from
• Memory Data Register (MDR)

  This is where data/instructions are stored, either before it sent to memory, or after being fetched
• Current Instruction Register (CIR)

  When an instruction has been fetched from memory it is loaded here before being split into opcode and operand. After this, it will be decoded.
• The ALU is made up of several components:

  • Arithmetic circuit
  • This carries out any arithmetic (addition, subtraction, multiplication or division)
  • Logic circuit
  • This carries out operations like AND, OR, NOT, XOR
  • Registers
  • These are additional registers to those mentioned above and can store data
  • Status flags
  • This includes overflow flags (if the value is too large for the register) or could include a zero flag (to tell if the answer is 0 easily)
  • Buses
  • These are used to transport data around the ALU and to other parts of the CPU
• Buses

  There are 3 buses which connect the CPU with the main memory (RAM):

  • Data bus
  • Address bus
  • Control bus

  There are also a number of other buses within the CPU which transport data between the different areas

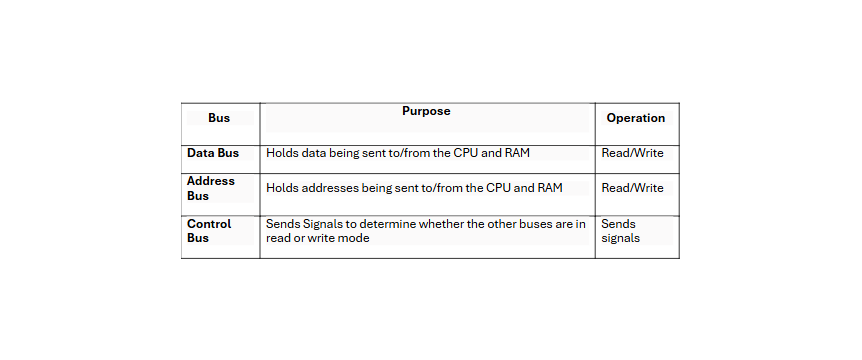

• Buses and there purpose
