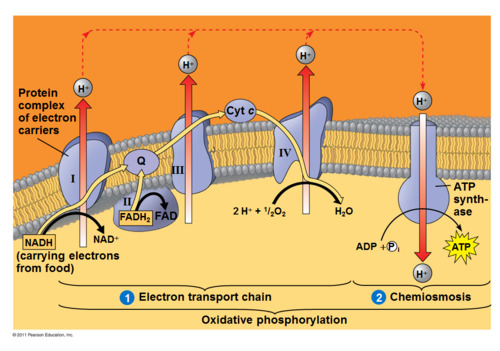

electron transport chain

• the electron transport chain


  what is the final stage of respiration
• the inner mitochondrial membrane


  where does the electron transport chain take place
• this is a series of carriers and pumps found the inner mitochondrial matrix


  what is the electron transport chain

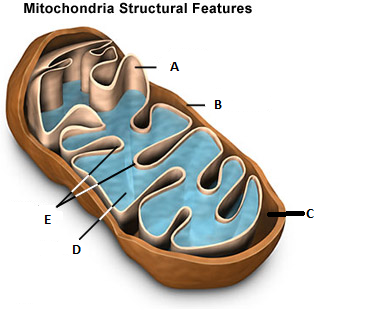

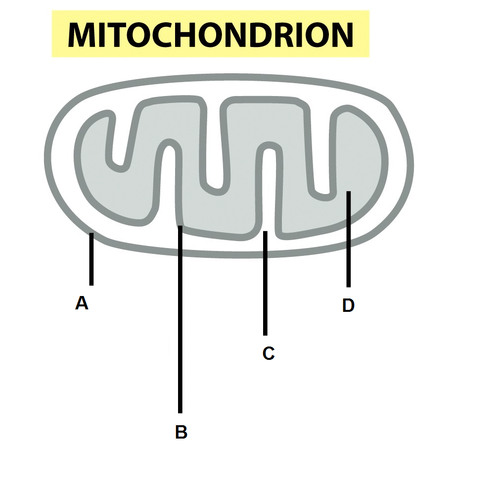

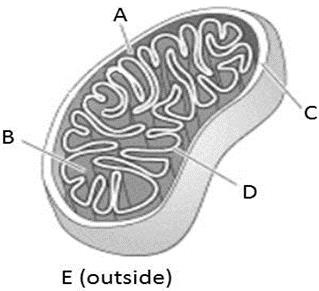

• outer membrane


  what is c


• inner membrane


  what is b


• inter-membrane space


  what is b


• matrix


  what is d

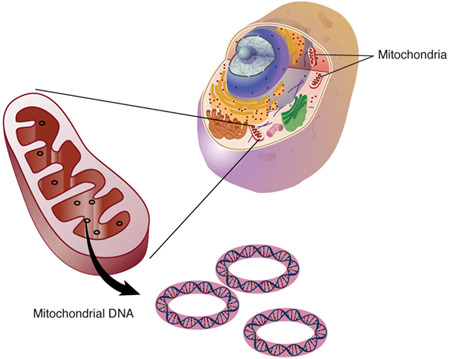

• Circular DNA


  what is this

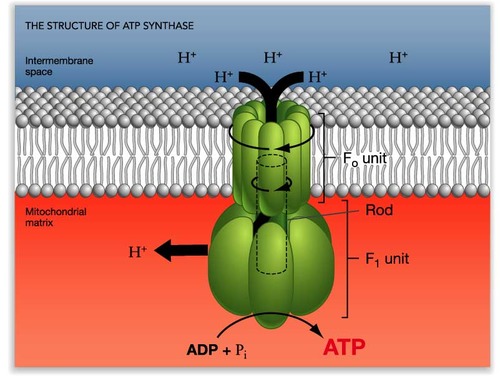

• ATP synthase


  what is the larger green section


• the electron transport chain


  what is this


• it takes up the whole inner membrane


  where is the electron transport chain

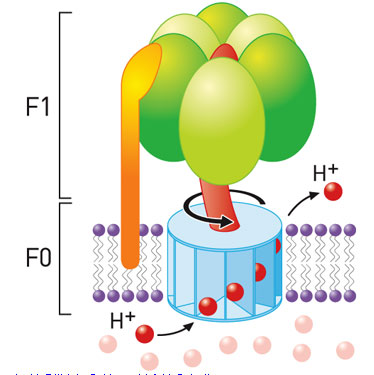

• stalked particle containing atp synthase


  what is this, what does it contain


• to increaser the surface area so more ATP can be synthesised


  why is it an advantage for the inner mitochondrial membrane to be folded into cristae
• codes for its own replication , codes for enzymes involved in aerobic respiration


  suggest 2 functions for mitochondrial DNA
