System Interrupts

• What are interrupts?

  • An interrupt is a signal to the processor that stops its current task and performs a different task temporarily
  • Interrupts can be hardware events or time-sensitive tasks
  • When an interrupt occurs, the processor suspends the current program execution and transfers control to an interrupt service routine
• Purpose and Role of Interrupts

  • Real-time Event Handling: hardware errors and signals from input devices e.g. hard disk failure
  • Device Communication: alerts from external devices e.g. printer jams and network errors
  • Multitasking: suspending processing in one application so that the user can switch to another

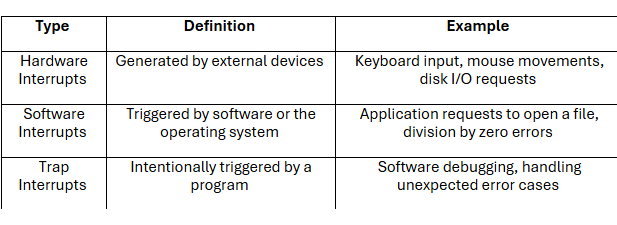

• Interrupts types Image


• The Interrupt Process #1

  1. Interrupt Request (IRQ)

  • An external device or software generates an interrupt, signalling the processor to stop its current task
  • The interrupt controller passes this to the interrupt handler for assessment

  2. Interrupt Acknowledge

  • The interrupt handler decides if the interrupt needs to be dealt with now or later
  • If yes, the current contents of the processor registers are saved in memory
• The Interrupt process #2




  3. Interrupt Service Routine (ISR) Lookup

  • The processor fetches the corresponding Interrupt Service Routine (ISR) associated with the interrupt type

  4. ISR Execution

  • The processor transfers control to the ISR and executes the routine to handle the specific interrupt

  5. Interrupt Exit

  • After the ISR completes, the processor restores the content of the registers from step 2
  • The fetch-decode-execute cycle is resumed

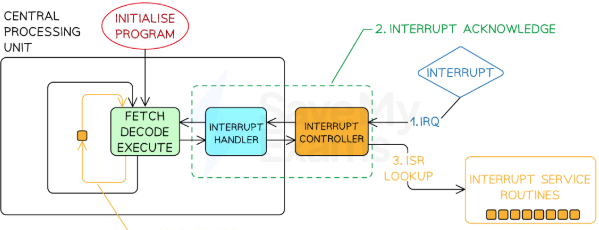

• Interrupt process Image


• What is an ISR?

  • An ISR is a special function that handles a particular interrupt type
  • Each type of interrupt has a corresponding routine, e.g. printer jam, hard disk failure, file download error, network connection error all have routines to be followed when they happen
  • ISRs should be concise, efficient, and carefully designed to minimise the time taken to execute, as they often need to handle time-sensitive events
• Interrupt priority and nesting

  • Interrupt prioritisation means the processor can acknowledge and switch to resolving a higher-priority interrupt
  • Prioritising interrupts is vital because many things can go wrong at the same time
  • Lower-priority ISRs may be temporarily suspended until the higher-priority ISR completes the execution
  • Nesting of interrupts refers to the ability of the processor to handle interrupts within interrupts
  • Proper management of nested interrupts avoids potential conflicts and ensures system stability

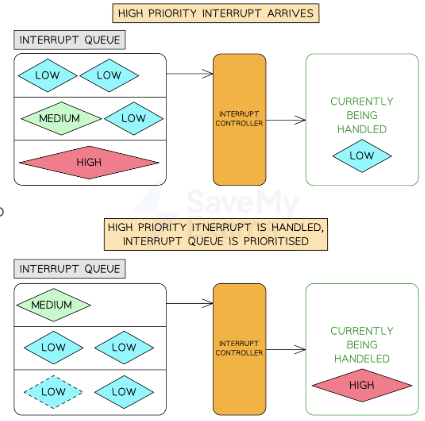

• Interrupt priority handling Image
