Virtual Machines

• What are virtual machines?

  • Virtual machines (VMs) are entire operating systems running inside another operating system
  • A user running Windows 11 could run a virtual machine of MacOS
  • This would allow them to navigate the GUI of MacOS and install software on it
  • Running a virtual machine helps access software that is only designed to run on specific operating systems
  • VM management software includes a Hypervisor that monitors all activity happening inside the VM

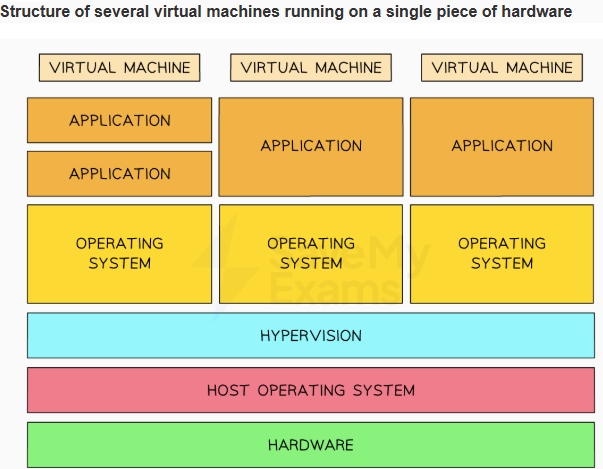

• Structure of several virtual machines running on a single piece of hardware image


• Cross-platform and forwards compatibility

  • Not all software is designed to run on all operating systems
  • Apple commonly makes software that only runs on MacOS for performance reasons
  • A Windows user could run a virtual machine of MacOS and install the software they need
  • Most software needs to be updated to work on the latest versions of operating systems
  • A user running the latest release of Windows may need to run a virtual machine of a previous release of Windows to use an application that hasn't received a forwards-compatibility update
• In Software Testing #1

  • VMs are a way to create isolated test environments, that leave the host operating system unaffected
  • Isolated environments allow a developer to:
  • Monitor the way their software affects system performance
  • Test on a clean-slate system, while no other applications are running
• • In Software Testing #2
  • VM management software can create virtual machines that act like they have older hardware
  • This allows developers to build software that can be run on older hardware so that more users can use the software
  • A developer can test against various operating systems, such as MacOS, Linux and Windows, for greater compatibility
  • This is achieved through compiling into intermediate code and running against different operating systems
• Consequences

  • VMs share the same system hardware as the host OS
  • Over-use of VMs can exhaust the host OS of the system of CPU, hard disk and memory
  • VM software such as VirtualBox can set maximum limits on system resources
  • A low-specification machine could be configured to allocate only 1GB of memory and 20% of CPU
  • A high-specification machine could afford up to 8GB of memory and 50% of the CPU
  • Operating systems are commonly free to download, but require an activation payment to access all features
