The Young Modulus

• What does the Young modulus measure?

  Ability of a material to withstand length changes


• Why is the Young modulus important for engineers?

  It ensures materials can withstand sufficient forces


• How is the Young Modulus defined mathematically?

  Ratio of tensile stress to tensile strain


• What is the formula for tensile stress?

  $\text{Stress} =$$\frac{F}{A}$
• What does the variable F represent in the Young Modulus formula?

  Force in newtons (N)


• What does the variable A represent in the Young Modulus formula?

  Cross-sectional area in square meters (m²)


• What does the variable ΔL represent in the Young Modulus formula?

  Extension in meters (m)


• What are the units of the Young Modulus?

  Pascals (Pa)

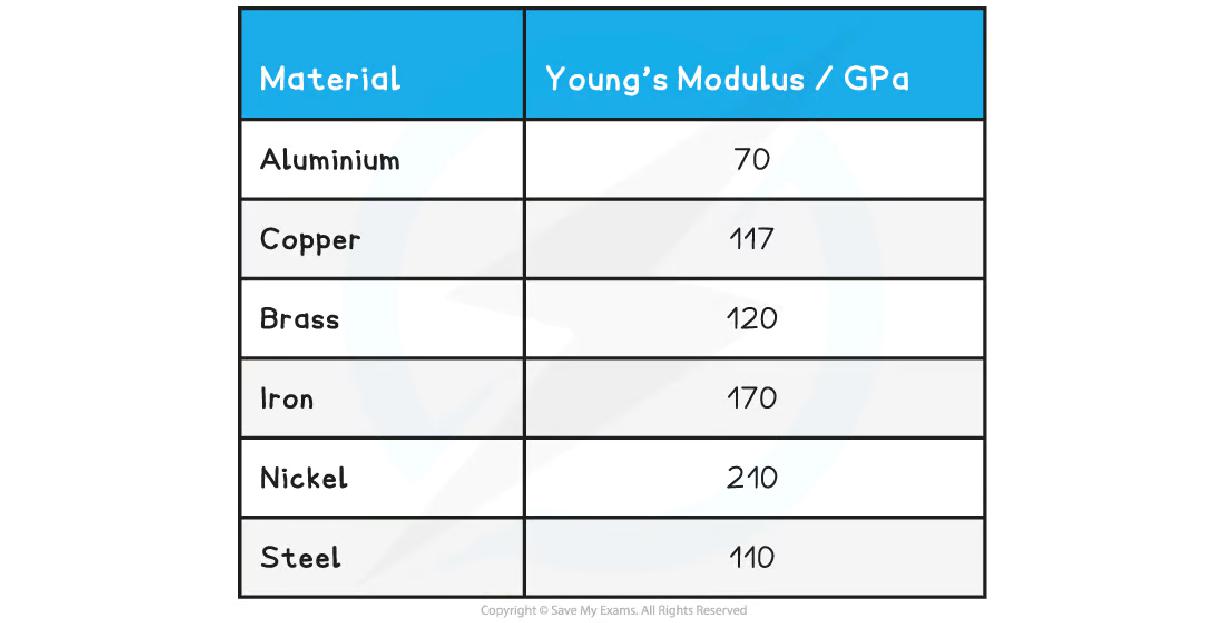

• What is typically the order of the Young Modulus for materials?

  Very large numbers, in the order of GPa

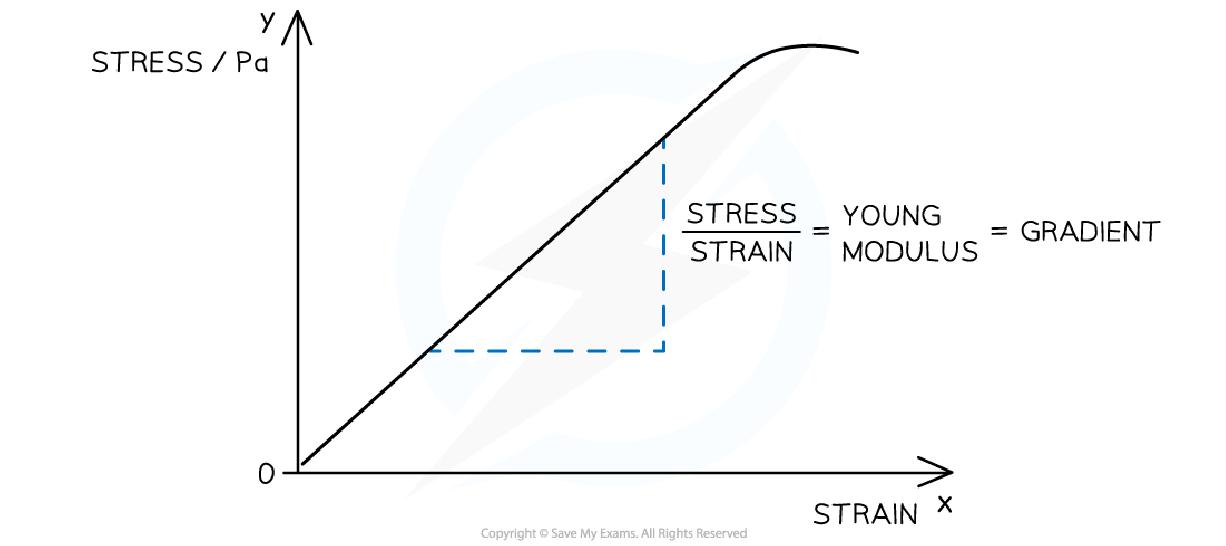

• What is the relationship between Young Modulus and stress-strain graphs?

  • Young Modulus is the gradient of a linear stress-strain graph
  • It applies in the region where Hooke's Law is obeyed
  • Area under the graph equals energy stored per unit volume


• What phrase can help remember the order of stress and strain in the Young modulus equation?

  “When you’re stressed, you show the strain”


• How do you calculate the Young Modulus from a stress-strain graph?

  1. Determine stress and strain at the linear region's end
  2. Calculate the gradient of the graph in this region


• What is the Young Modulus of a copper wire if the gradient is $112.5 \times 10^6$ and strain is $0.9 \times 10^{-3}$?


  $1.25 \times 10^{11} \text{ Pa}$
