What is the overall aim of the experiment?
Investigate the relationship between
e.m.f
and
internal resistance
View source
What is the independent variable in the experiment?
Resistance
,
R (Ω)
View source
What are the dependent variables in the experiment?
Voltage, V
(V) &
current, I
(
A
)
View source
What are the control variables in the experiment?
E.m.f
of the cell and
internal resistance
of the cell
View source
What is the resolution of the voltmeter used?
1 mV
View source
What is the resolution of the ammeter used?
0.1 mA
View source
What is the method for measuring voltage and current in the experiment?
Connect the
cell
and
resistor
in series.
Record the
voltmeter
reading with the
switch
open.
Set the
variable resistor
to maximum, close the switch, and record V and I.
Vary the resistance and record V and I for at least 8-10
readings
.
View source
What is the equation relating e.m.f and internal resistance?
E = I (R + r)
View source
How can the equation for e.m.f be simplified?
E =
IR
+
Ir
= V +
Ir
View source
What is the rearranged equation for voltage, V?
V =
–rI
+
E
View source

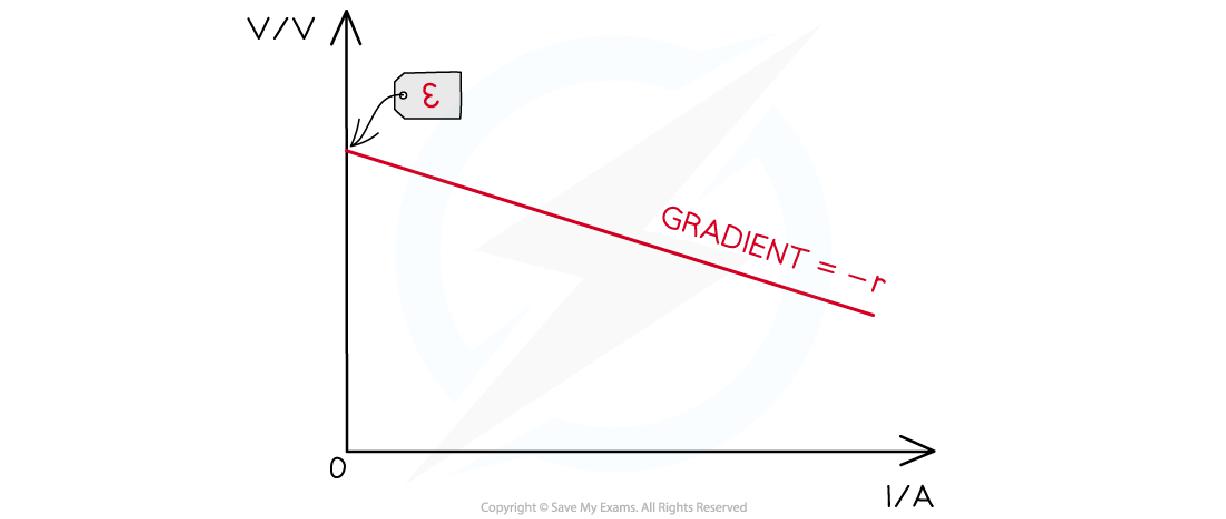

How does the equation for voltage compare to the equation of a straight line?
y = V, x = I,
gradient
= –r, y-intercept = E
View source

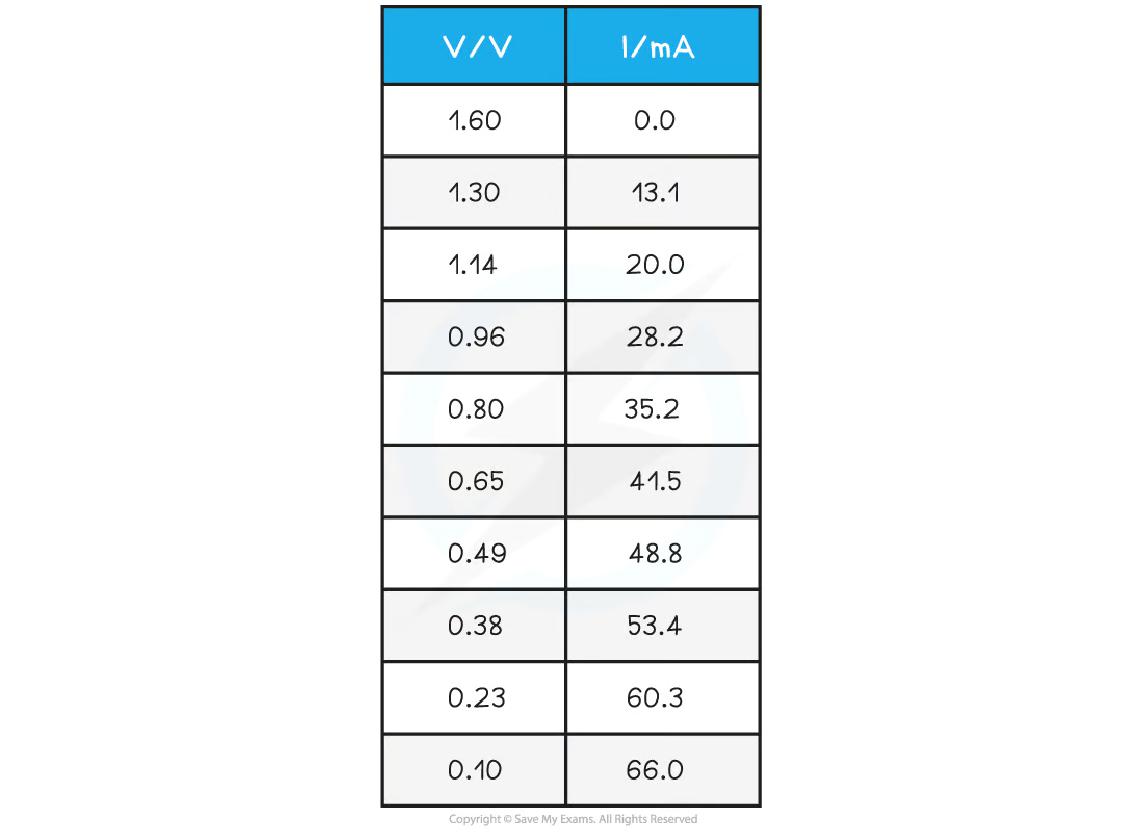

What should you do to analyze the results of the experiment?
Plot a graph of V against I.
Draw a line of best fit.
Measure the gradient and compare with
manufacturer's value
.
Identify the y-intercept as
e.m.f
and gradient as negative
internal resistance
.
View source
What are systematic errors in the experiment?
Only close the switch briefly to avoid resistance changes
View source
What are random errors in the experiment?
Use fairly new
cells
and wait for readings to
stabilize
View source
What safety considerations should be taken during the experiment?
Switch off
power supply
if
burning smell
occurs.
Keep liquids away from electrical equipment.
Monitor electrical components for overheating.
View source
What is the first step in determining e.m.f and internal resistance from a graph?
Plot the data on a graph of
V
against
I
View source
How do you calculate the gradient from the graph?
Gradient =
Δ
y
Δ
x
\frac{\Delta y}{\Delta x}
Δ
x
Δ
y
View source
How is the internal resistance related to the gradient of the graph?
Gradient = –r (
Ω
)
View source
How is the e.m.f related to the y-intercept of the graph?
Y-intercept
=
E (V)
