2.4 Boolean logic

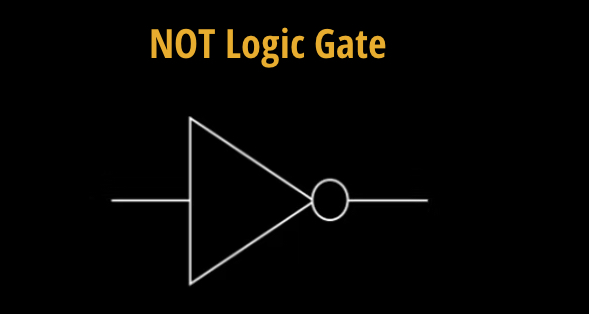

• What is NOT logic gate?

  Produce output which is the opposite of the input

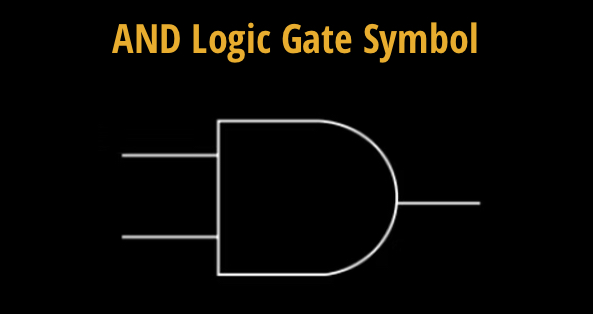

• What is the AND logic gate?

  Output 1 only if both inputs are also 1

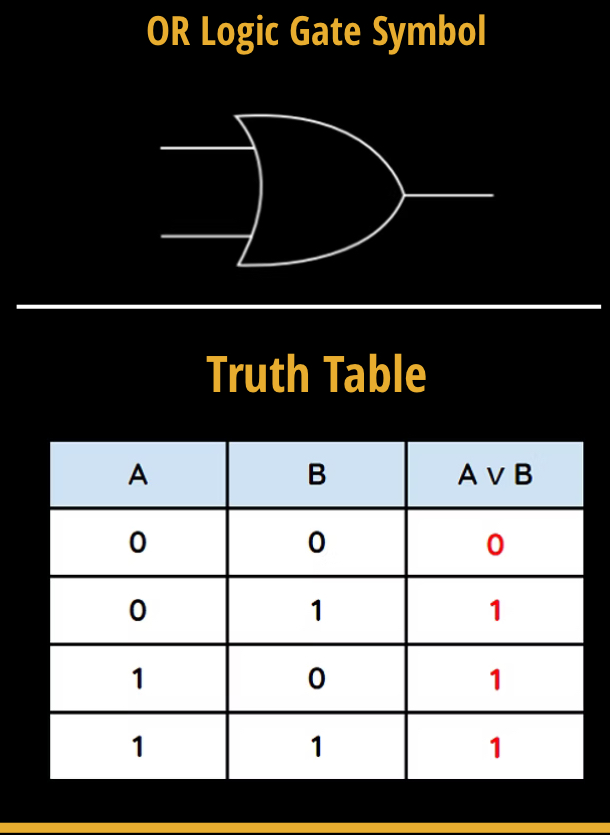

• What is OR logic gate?

  Will output 1 if either of the input is 1
