Contamination & Irradiation

• Contamination & Irradiation

  Contamination

  • Contamination is defined as:The unwanted presence of materials containing radioactive atoms on other materials
  • A substance is only radioactive if it contains radioactive atoms that emit radiation
  • Contamination occurs when a radioactive isotope gets onto a material where it should not be
  • This is often due to a radiation leak
  • As a result of this, the small amounts of the isotope in the contaminated areas will emit radiation and the material becomes radioactive
• The Assassination of Alexander Litvinenko

  • Contamination is almost always a mistake or an accident
  • However, in 2006 a former Russian spy was poisoned by a radioactive isotope
  • His name was Alexander Litvinenko and he was contaminated with the isotope polonium-210
  • He died because of the poisoning
• It is believed that the polonium-210 that poisoned Alexander Litvinenko was secretly put into a cup of tea he was drinking


• Irradiation

  • Irradiation is defined as:The process of exposing a material to alpha, beta or gamma radiation
  • Irradiating a material does not make that material radioactive
  • However, it can kill living cells


• This sign is the international symbol indicating the presence of a radioactive material

  • Irradiation can be used as a method of sterilisation:
  • Surgical equipment is irradiated before being used in order to kill any micro-organisms on it before surgery
  • Food can be irradiated to kill any micro-organisms within it
  • This makes the food last longer without going mouldy
• Comparing Contamination and Irradiation

  • Irradiation is the process of exposing a material to alpha, beta or gamma radiation
  • Contamination is where small amounts of the radioactive isotope leak onto the material
  • The only way a material can become radioactive is if that material becomes contaminated
  • Although irradiation can cause harm, contamination has the potential to cause far more harm, due to the continuous exposure to radiation that it will produce
• Comparing Contamination and Irradiation

  Contamination is particularly dangerous if a radioactive source gets into the human body

  • The internal organs will be irradiated as the source emits radiation as it moves through the body

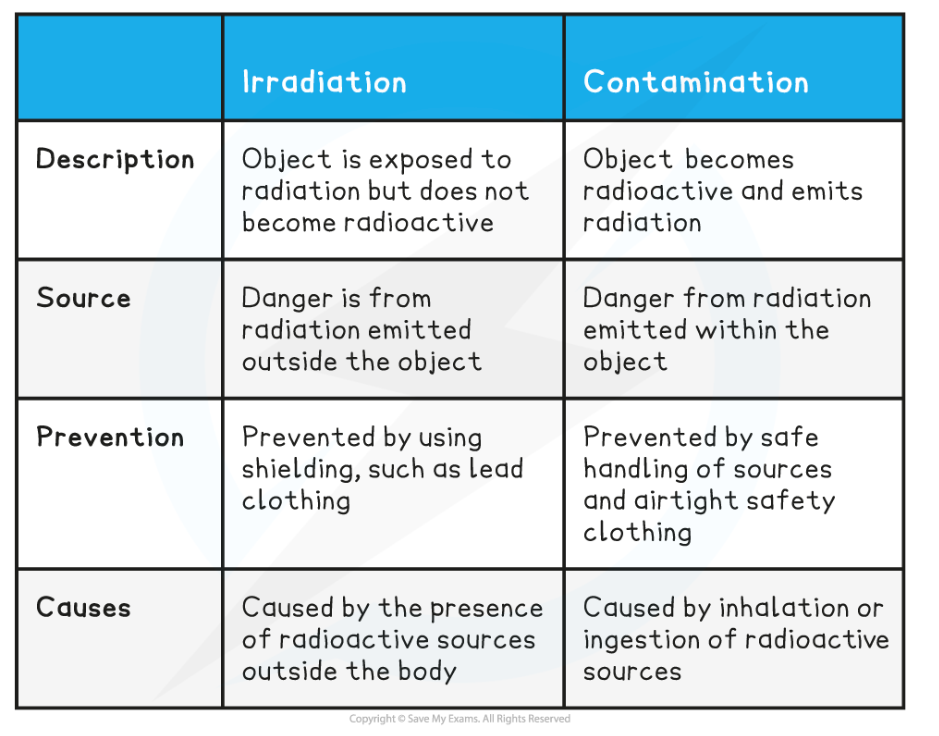

• Comparison of Irradiation and Contamination Table


• Protecting against Irradiation and Contamination

  • It is important to reduce the risk of exposure to radiation
  • Radiation can mutate DNA in cells and cause cancer
  • Shielding is used to absorb radiation

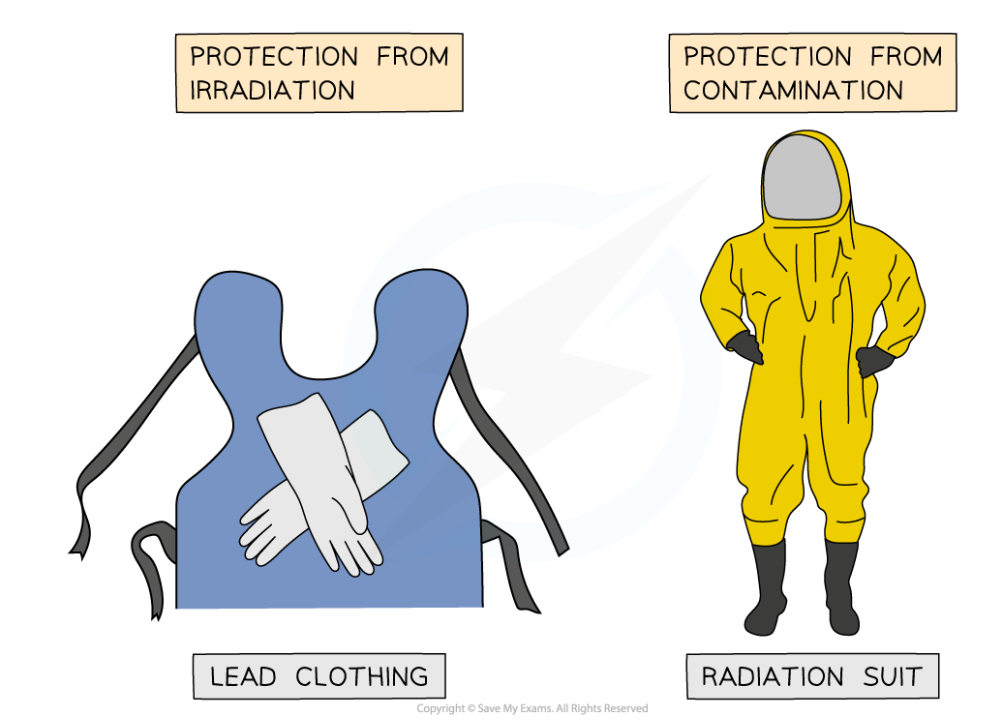

  • Lead lined suits are used to reduce irradiation for people working with radioactive materials
  • The lead absorbs most of the radiation that would otherwise hit the person
• Protecting against Irradiation and Contamination

  • To prevent contamination an airtight suit is used by people working in an area where there may have been a radiation leak
  • This prevents radioactive atoms from getting inside the person
• Lead shielding is used when a person is getting an x-ray, as well as for people who work with radiation. Contamination carries much greater risks than irradiation


• Chernobyl Nuclear Disaster

  • Chernobyl Nuclear Power Plant is in Ukraine
  • In 1986 an incident at the plant caused an explosion
  • A large amount of radioactive material was released from the plant and went into the air
  • Hundreds of thousands of people were evacuated from the surrounding area to protect them from being contaminated
  • An exclusion zone of around 2,600 square kilometres is still in place around the power plant
  • This is because the level of radiation in the area is still very high
