Leavers + gears

• Force multiplier


  Something that is used to increase the effect of a force and is used to move large or heavy objects e.g. levers and gears
• Lever


  A simple machine consisting of a pivot, an effort and a load
• Pivot


  The point around which something can rotate or turn
• Effort


  The force used to move a load over a distance
• Load


  The overall force that is exerted by an object on a surface

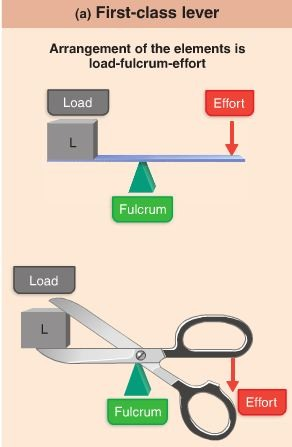

• First-class lever


  When the pivot is in the middle with the effort and load on either side e.g. a see-saw

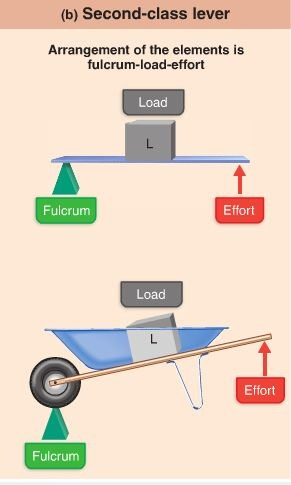

• Second-class lever


  When the load is in the middle with the pivot and effort on either side e.g. a wheelbarrow

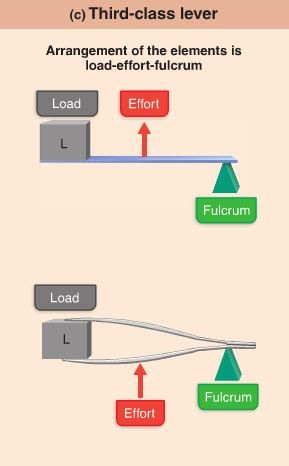

• Third-class lever


  When the effort is in the middle with the pivot and load on either side e.g. tweezers, cooking tongs

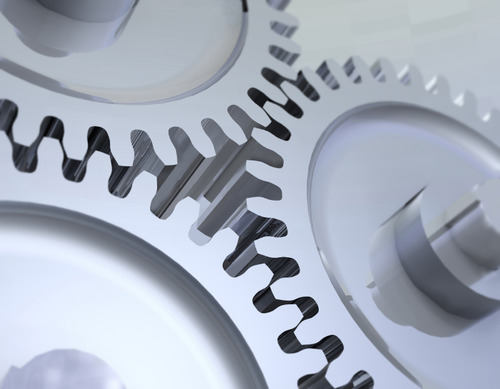

• Gears


  Wheels with toothed edges that rotate about an axle or shaft


• Teeth (of a gear)

  The teeth of one gear fit into the teeth of another gear meaning one gear turns the other


• Direction of rotation of gears

  Where the gears meet, the teeth must both move in the same direction which means that the gears rotate in opposite directions


• What happens when a large gear is driven by a smaller one

  The large gear will rotate slowly but will have a greater moment than the smaller gear


• What happens when a small gear is driven by a larger one

  The small gear will rotate quickly but will have a smaller moment than the larger gear
