Circuit systems

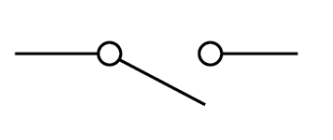

• Switch (open)


  Used to turn a circuit off

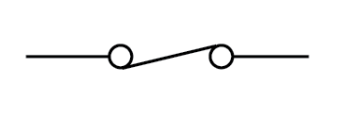

• Switch (closed)


  Used to turn a circuit on


• Cell (electrical)


  Provides the energy for a circuit


• Battery


  Two or more cells connected together


• Diode


  A device that allows current to flow in one direction only


• Resistor (fixed)


  A device that restricts or limits the flow of current


• Variable resistor


  A device that has a slider which can be moved to change the resistance


• LED (light-emitting diode)


  A diode which emits light and is much more efficient than a filament bulb


• Lamp (filament bulb)


  A device containing a filament in a bulb that heats up when a current flows so that it emits light


• Fuse


  A safety device consisting of a strip of wire that melts, breaking an electric circuit, if too much current passes through it


• Voltmeter


  A device placed in parallel with a component to measure the potential difference (voltage) across it


• Ammeter


  A device placed in series with a component to measure the current through it


• Themistor


  A device whoseresistance decreasesas the surroundingtemperature increases


• LDR (light-dependent resistor)


  A device whoseresistance decreasesas the surroundinglight intensity increases
