Electrical appliances + power ratings

• Electrical appliance


  A device that transfers energy from one store to another


• Electrical power


  The amount of energy transferred by an electrical appliance each second


• Two things the amount of energy an appliance transfers depends on

  How long the appliance is switched on for and the power of the appliance
• One watt is equal to

  The power when one joule of energy is transferred in one second (1 W = 1 J/s)


• P = IV


  The equation linking power, current and potential difference
• P = I²R


  The equation linking power, current and resistance
• 230 V


  The potential difference of mains electricity and electrical appliances

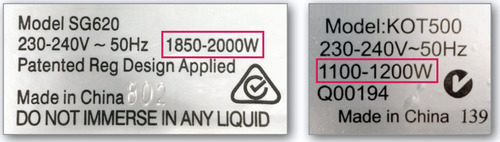

• Power rating


  The power of an electrical appliance; usually given watts (W) or kilowatts (kW)


• Watts (W)


  The SI unit for power


• One kilowatt (kW) is equal to _____ watts (W)

  1000 watts (W)


• Seconds (s)


  The SI unit for time


• One hour (h) is equal to _____ seconds (s)

  3,600 seconds (s)

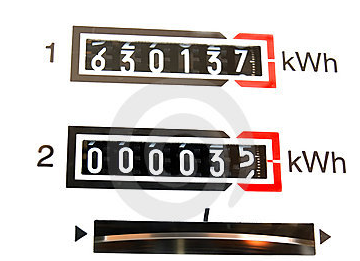

• Kilowatt-hour (kWh)


  The unit used for energy transferred when power is in kilowatts and time is in hours (electricity is charged per kWh)


• One kilowatt-hour (kWh) is equal to _____ joules (J)

  3,600,000 joules (J)
