National grid

• National Grid


  A system of cables and transformers linking power stations to consumers

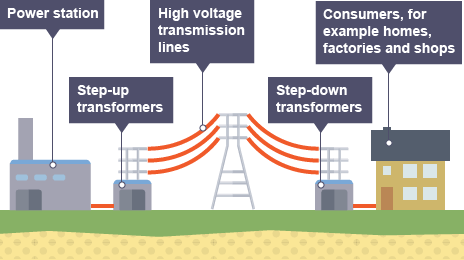

• What the National Grid does

  Connects power stations to homes, workplaces and public buildings all around the country


• Transformer


  An electrical device that changes the potential difference of an alternating current

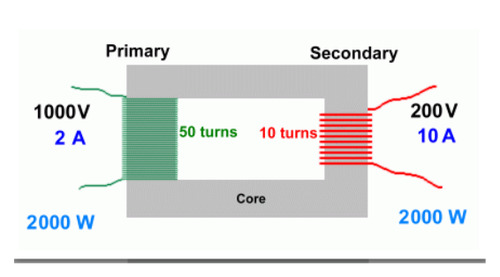

• Structure of a transformer

  Two coils of wire wrapped around a magnetic core


• Step-up transformer


  A transformer used to increase the potential difference from the power station to the transmission cables


• Step-down transformer


  A transformer used to decrease the potential difference to a much lower value for domestic use

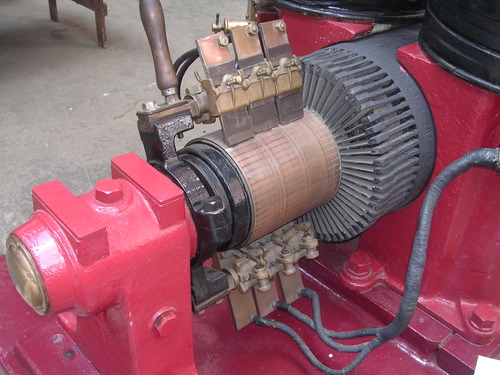

• Generator


  A device found in power stations that transfers kinetic energy to electrical energy

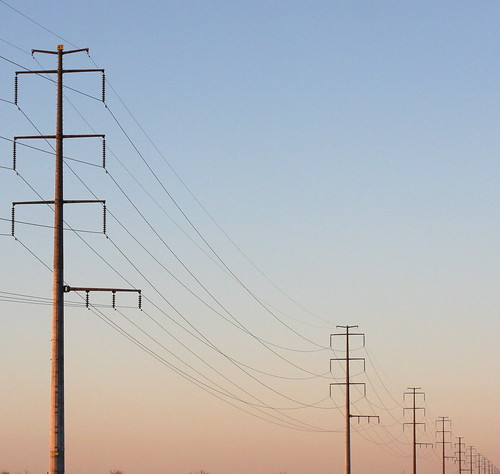

• Transmission lines


  Cables used to carry electricity long distances via the National Grid


• Energy dissipated by transmission lines

  wasted energy transferred to the surroundings due to an electric current flowing through the cables and causing them to get hotter


• P = I²R


  The equation linking power (dissipated), current and resistance


• How to reduce the energy dissipated from transmission lines

  1) thick cables which have a low resistance

  2) high potential difference to reduce the current passing through them
• 25,000 V


  The potential difference of the electricity produced in power stations


• 400,000 V


  The potential difference that electricity is stepped to before it is transmitted across the country


• 230 V


  The potential difference that electricity is stepped down to before it is delivered to houses
