pressure and volume

• Effect of pressure changes on the volume of a gas


  The gas will expand or compress
• Expand


  When the space between particles increases so they occupy a greater volume

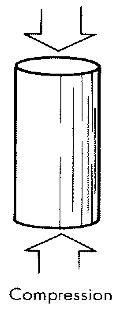

• Compress


  When the space between particles decreases so they occupy a smaller volume


• Effect of increasing the volume on the pressure of a gas

  Increasing the volume causes the pressure to decrease providing the mass and the temperature of the gas stay the same

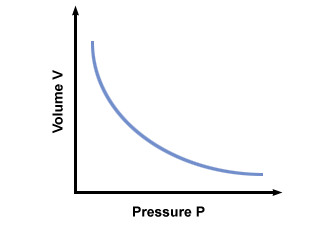

• Relationship between gas pressure and volume

  The pressure and volume of a gas are inversely proportional


• Inversely proportional


  The relationship between two variables whose product is a constant


• pV = constant


  The equation linking pressure, volume and a constant


• p


  The symbol for pressure
• V


  The symbol for volume
• Pascals (Pa)


  The SI unit for pressure
• Cubic metres (m³)


  The SI unit for volume

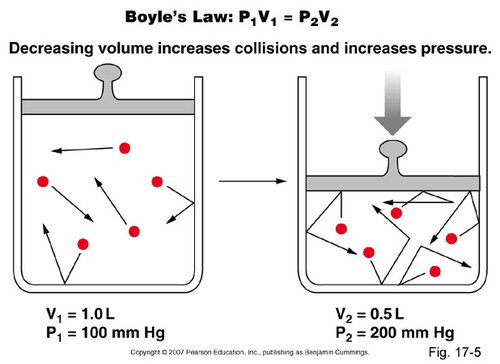

• p(1)V(1) = p(2)V(2)


  The equation for the change in volume or pressure for gas at a constant temperature


• p(1) and V(1)


  The pressure and volume before either one is changed


• p(2) and V(2)


  The pressure and volume after either one is changed
