Respirometer

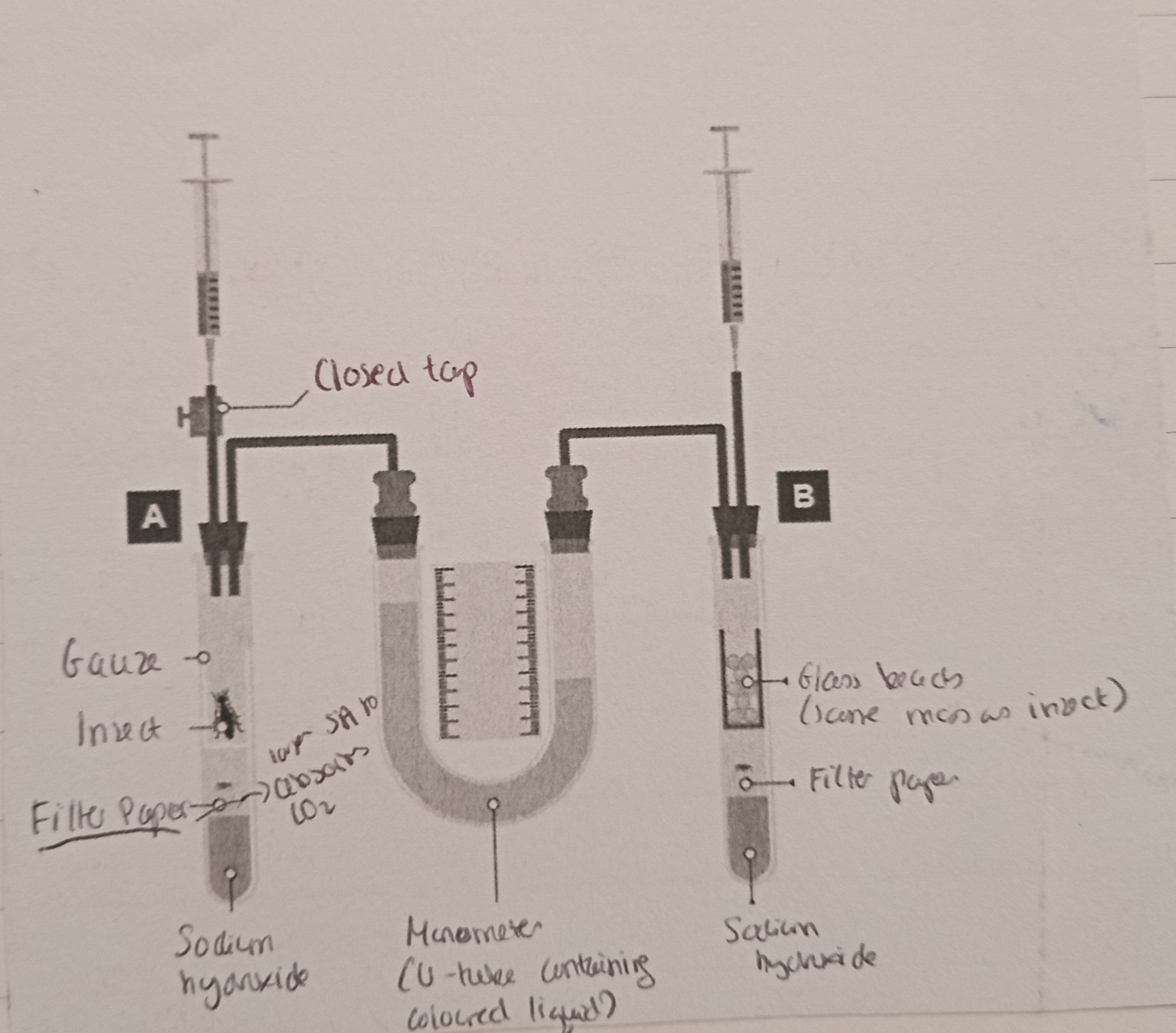

• Using this diagram, tell me the features of the respirometer and is purpose


  Label the diagram.


• What's the purpose of the soda lime?

  To absorb CO2

  So we can be sure that the distance moved by the coloured liquid is by O2 taken in not CO2 given out
• How does the the coloured liquid in the manometer move?

  .When insects respire aerobically , O2 is take in, Co2 absorbed by soda lime

  When they take in O2

  . Decreases vol & pressure in experimental tube ( p is lower than in control tube)

  . So, Liquid moves towards respiring organism, because it is pushed
• What's the purpose of the filter paper?

  Increase SA for CO2 absorption
