roots are covered in hairs to increase the surface area of the root so it can absorb water and mineral effectively
root hair cells have root hair to increase surface area
root hair cells dont contain chloroplast as they dont need chlorophyll to carry out photosynthesis since theyre underground and cant access light to photosynthesis

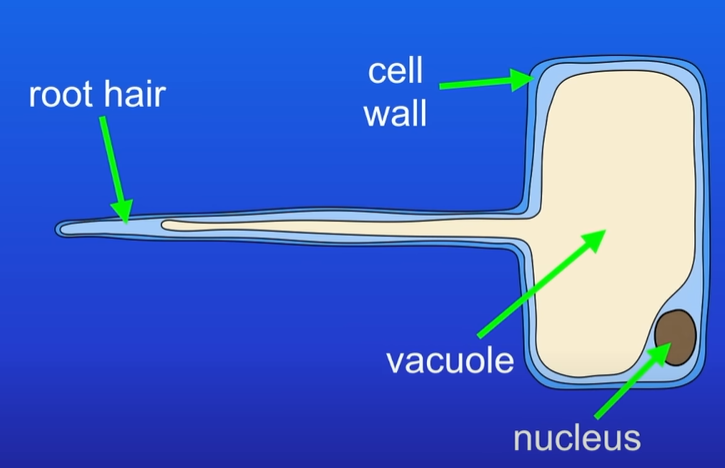

labelled root hair cell diagram
simple diagram
A)
B)
C)
D)
image of root hairs on roots
reallife image
xylem cells are found in the plant stem
xylem form long tubes that carry water and dissolved mineral from the roots to the leaves
xylem cells have thick cell walls containing a chemical lignin which provides support for the plant but causes the cell to die
xylem cells' end walls between the cells have broken down so cells form a long tube so water and dissolved minerals to flow easily
xylem cells dont contain
nucleus
cytoplasm
vacuole
chloroplast
xylem cells dont have any internal structures allowing water and minerals to flow

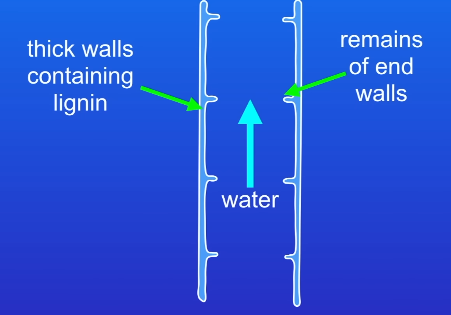

xylem cell diagram
A)
B)
C)

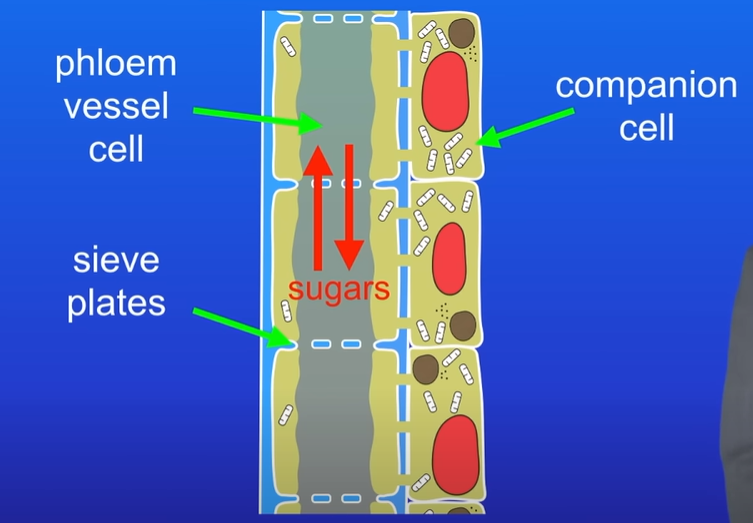

phloem tubes carry dissolved sugars up and down the plants
phloem contain 2 different types of cells
one type of cell in a phloem cell is phloem vessel cells
phloem vessel cells have no nucleus and limited cytoplasm
phloem vessel cells end walls with pores called sieve plates which allows dissolved sugars to flow through its internal structures
phloem vessel cells have very little cytoplasm meaning they have very little mitochondria so each phloem vessel cell have a companion cell connected by pores
the companion cells of a phloem vessel cell contain mitochondria to provide energy for it
