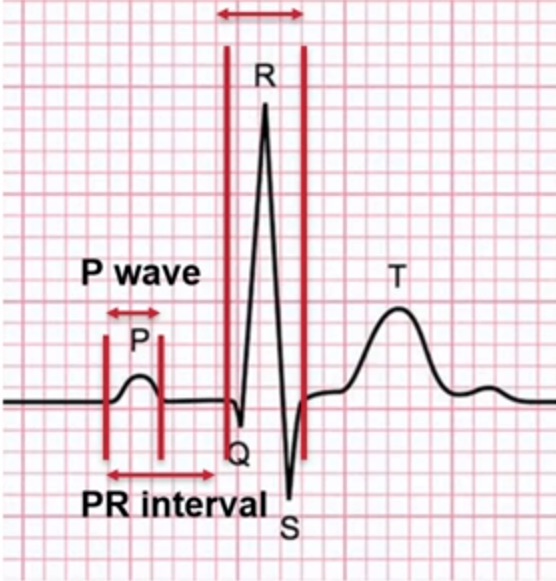

ECG P, QRS, T

• is there a clear single P, QRS and T?

  • P = no more than 0.12 seconds (3 small squares)
  • PR interval = no more than 0.2 seconds (1 big square)
  • QRS = no more than 0.1 seconds (half of a big square)
