• The Brachial Plexus:

  • a network of nerves extending from the spinal cord
  • Which travels over the 1st rib, behind the clavicle and into “axilla”


• The Axilla:

  • A pyramid shaped region inferomedial to the shoulder joint
  • Contains the brachial plexus and the vessels of the upper limb


• The Brachial Plexus:

  • formed by ventral rami C5 - T1
  • Roots become trunks
  • Trunks become divisions
  • Divisions become cords
  • Cords become the terminal branches

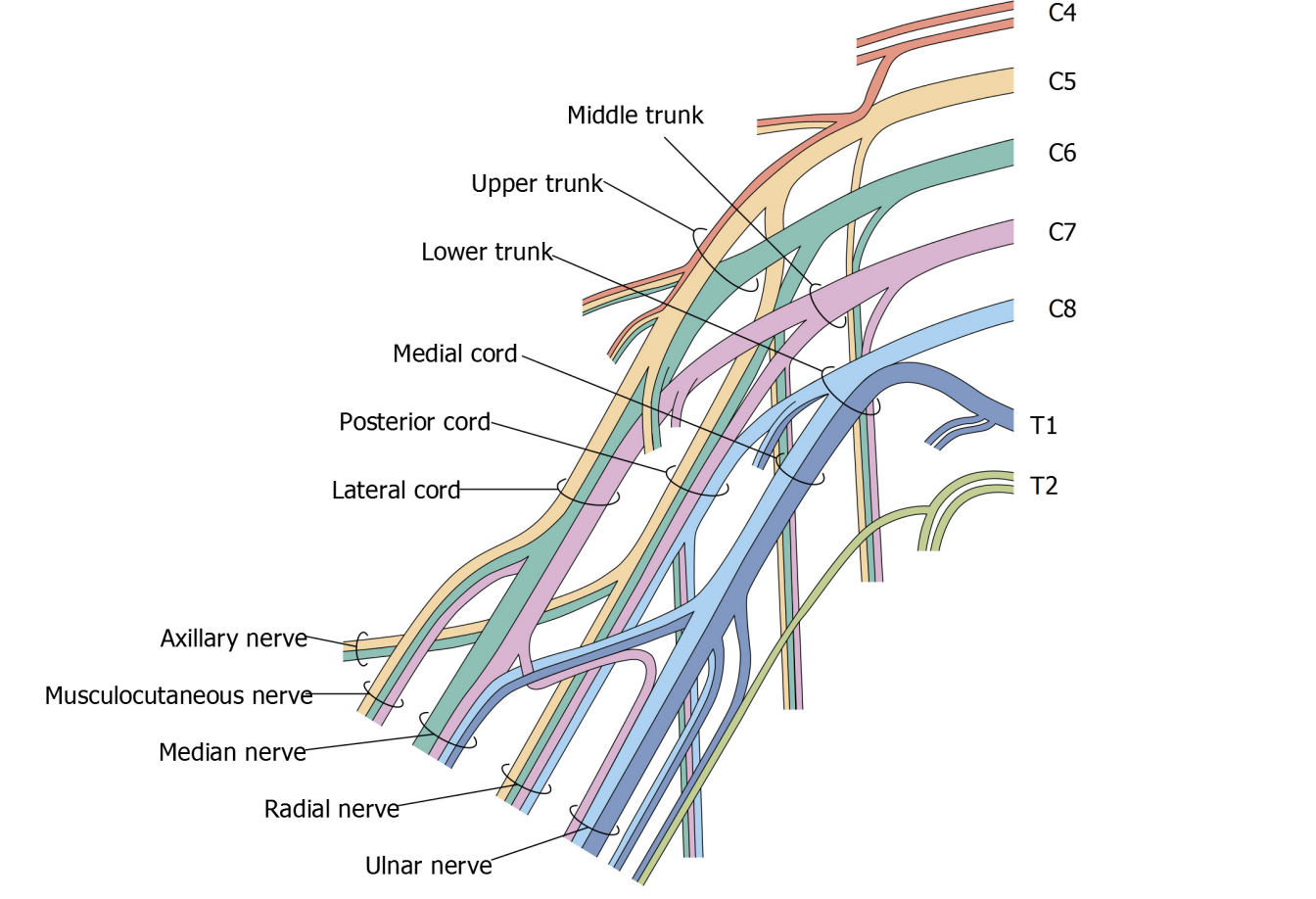

• Schematic representation

  A) C5

  B) C6

  C) C7

  D) C8

  E) T1

  F) middle trunk

  G) upper trunk

  H) lower trunk

  I) medial cord

  J) posterior cord

  K) lateral cord

  L) axillary nerve

  M) musculocutaneous nerve

  N) median nerve

  O) radial nerve

  P) ulnar nerve
