electricity

• Proton


  Positively charged particle in the nucleus of an atom
• Neutron


  A subatomic particle that has no charge and that is found in the nucleus of an atom
• Ion


  A charged atom
• Electric Field


  The field around charged particles that exerts a non-contact force on other charged particles.
• Non-Contact Force


  A force that one object can apply to another object without touching it
• Line of Force


  The path that a positive charge would follow due to the electric field
• Cell


  Pushes electrons around a complete cicuit


• Battery


  Two or more cells


• Switch


  Enable the current in a circuit to be turned on or off


• Lamp


  Emits light when current passes through it


• Diode


  A device that permits current to flow through it in only one direction.


• Light-emitting Diode (LED)


  combines the propertied of a diode and a lamp


• Ammeter


  A device used to measure current in a circuit

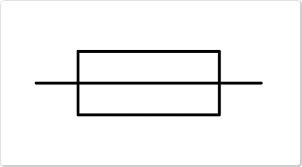

• Fixed Resistor


  limits the current in a circuit


• Variable Resistor


  Allows current to be varied


• Fuse


  A safety device with a thin metal strip that will melt if too much current passes through a circuit


• Heater


  Designed to transfer energy from an electric current to heat the surroundings


• Voltmeter


  A device used to measure voltage, or electrical potential energy difference


• Electrons


  Negatively charged subatomic particles

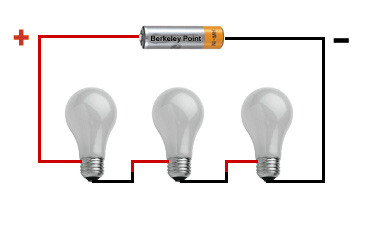

• Series


  A circuit in which all parts are connected end to end to provide a single path of current.


• Potential Difference


  The work done by each Coulomb of charge

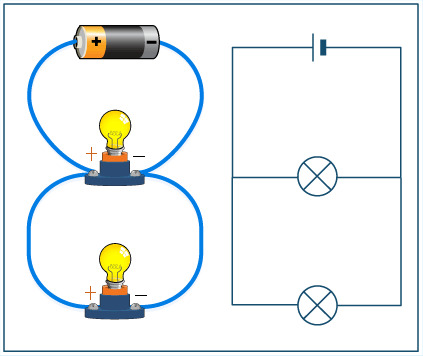

• Parallel


  A circuit in which parts are connected in separate circuits to each other to provide a single path of current.


• Charge Equation


  =Energy Transferred÷Potential Difference




  =E÷V
• Unit of Charge


  Coulomb(s)




  C
• Unit of Current


  Ampere(s)




  A
• Unit of Potential Difference

  Volt(s)




  V
• Resistance Equation


  =Potential Difference÷Current




  =V÷I
• Unit of Resistance


  Ohm(s)




  Ω
• Ohm's Law


  The current through a resistor at a constant temperature is directly proportional to the Potential difference across the resistor
• Thermistor


  A resistor that changes its resistance with a change of temperature.
• Light Dependent Resistor


  A resistor which has high resistance in the dark, and low resistance in bright light
• Total Resistance of a series circuit

  Sum of the resistances of every component
• Total potential difference of a series circuit

  Sum of the potential differences of every cell
• Current of a series circuit

  The same current passes through each component
• Potential difference in a series circuits

  Potential difference is shared between the components
• Total Current in a parallel circuit

  The sum of the currents through each branch
• Total resistance of a parallel circuit

  Always less than the resistor with the least resistance
• Alternating current


  A flow of electric charge that regularly reverses its direction.
• Live Wire


  The brown wire in a cable or plug.
• Neutral Wire


  A wire that carries current away from the component; it is coated in blue plastic.
