Affinity of haemoglobin for oxygen increases, so oxygen binds tightly to haemoglobin. When partial pressure is low, oxygen is released from haemoglobin
Conditions become acidic causing haemoglobin to change shape. The affinity of haemoglobin for oxygen therefore decreases, so oxygen is released from haemoglobin (Bohr effect)
It is hard for the first oxygen molecule to bind. Once it does, it changes the shape to make it easier for the second and third molecules to bind (positive cooperativity). It is then slightly harder for the fourth oxygen molecule to bind because there is a low chance of finding a binding site
Saturation of haemoglobin with oxygen (in %), plotted against partial pressure of oxygen (in kPa). Curves further to the left show the haemoglobin has a higher affinity for oxygen

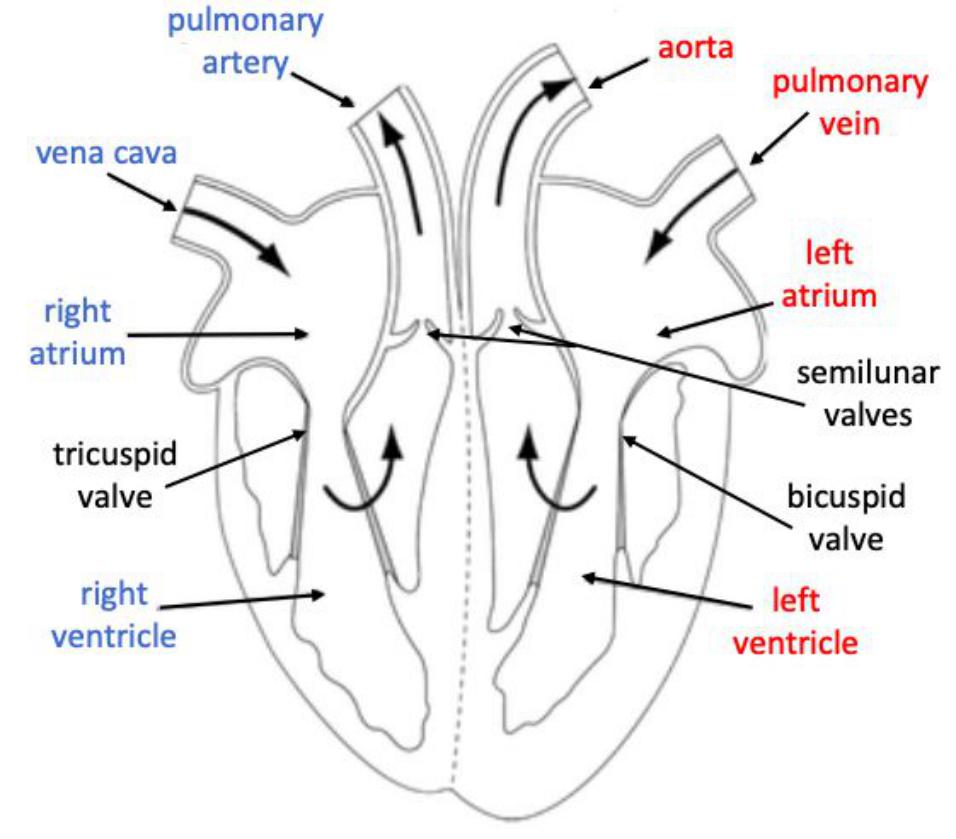

Atria: thin-walled and elastic, so they can stretch when filled with blood. Ventricles: thick muscular walls pump blood under high pressure. The left ventricle is thicker than the right because it has to pump blood all the way around the body
Arteries have thick walls to handle high pressure without tearing, and are muscular and elastic to control blood flow. Veins have thin walls due to lower pressure, therefore requiring valves to ensure blood doesn't flow backwards. Have less muscular and elastic tissue as they don't have to control blood flow
The heart is relaxed. Blood enters the atria, increasing the pressure and pushing open the atrioventricular valves. This allows blood to flow into the ventricles. Pressure in the heart is lower than in the arteries, so semilunar valves remain closed
The ventricles contract. The pressure increases, closing the atrioventricular valves to prevent backflow, and opening the semilunar valves. Blood flows into the arteries
A watery substance containing glucose, amino acids, oxygen, and other nutrients. It supplies these to the cells, while also removing any waste materials
As blood is pumped through increasingly small vessels, this creates hydrostatic pressure which forces fluid out of the capillaries. It bathes the cells, and then returns to the capillaries when the hydrostatic pressure is low enough
Sucrose enters companion cells of the phloem vessels by active loading, which uses ATP and a diffusion gradient of hydrogen ions. Sucrose then diffuses from companion cells into the sieve tube elements through the plasmodesmata
As sucrose moves into the tube elements, water potential inside the phloem is reduced. This causes water to enter via osmosis from the xylem and increases hydrostatic pressure. Water moves along the sieve tube towards areas of lower hydrostatic pressure. Sucrose diffuses into surrounding cells where it is needed
