Force on a Current-Carrying Conductor

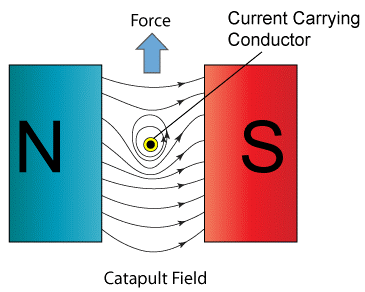

• If a current carrying conductor is in a magnetic field, it warps the field lines.


• The field lines from the magnet want to straighten out naturally.


• This causes a catapult like action on the wire creating a force


• • If you reverse current, you will reverse direction of force
  • If you reverse direction of field, you will reverse direction of force.

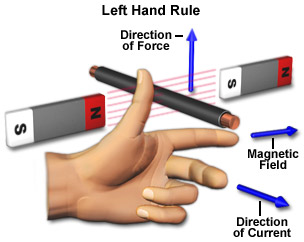

  • The direction of the force, current or magnetic field is given by Fleming’s left-hand rule
