3.2 refraction, diffraction, interference

Cards (24)

  • Coherent waves - wave sources of the same type and a single frequency
    • Ensures they maintain a constant phase relationship
    Path difference - the difference in length of the paths travelled by different waves
  • Interference
    • Interaction of different waves
    • Results in altered waves

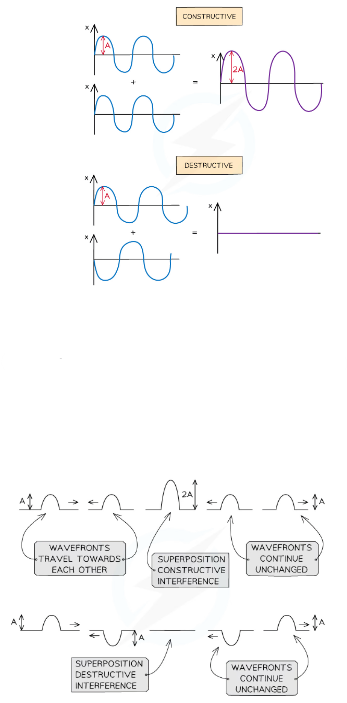

    Constructive interference
    • In phase
    • Path difference is n x wavelength
     Destructive interference
    • 180° out of phase
    • Path difference is (2n+1) x wavelength / 2
    Standing waves
    • Stationary and oscillating
    • Always in phase
    • Constant change
  • Node - point of no displacement
    • Has no energy
    Antinode - point of maximum displacement
    Phase difference between two particles
    • 0 is separated by even number of nodes
    • 180 (pi radians) if separated by odd number of nodes
    • To observe a clear diffraction pattern, a monochromatic, coherent light source is needed
    • E.g. lasers
    • Monochromatic - all light has same wavelength and frequency so is same colour
    • If the wavelength of light is equal to the aperture, a diffraction pattern appears
    • The central fringe is bright (central maximum) with alternating dark and bright fringes on either side
    • Caused by destructive and constructive interference

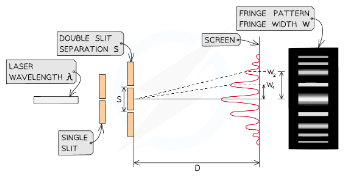

  • Young’s double slit experiment
    • Can use two separate coherent light sources or shine laser through two slits
    • Laser light is monochromatic and coherent
    • Both slits have to be approximately the same size as the wavelength so it is diffracted
    • The light from the slits act as two coherent point sources
    • Get a pattern of light and dark fringes depending on constructive or destructive interference
  • Practical considerations
    • It is easier to measure centre point of dark fringes than light
    • Measure across several fringes (centre to centre) to reduce error
    • Wavelengths of light written in nanometers (x10-9m)
    • Ensure all figures are returned to meters for calculations
  • Fringe spacing
    • Fringe spacing - distance from the centre of one minimum to the centre of the next minimum
    • The wavelength of light is so small a high D/s ratio is needed so the fringe spacing is big enough to see
    • Measure across several fringes and divide by the number of fringes to find the average
    • More accurate result
    Superposition - constructive and destructive interference
    sin(x)= w/D     sin(x) = (width of central fringe) / (distance of screen from slits)
    sin(x) = wavelength / distance between slits
    • w/D = wavelength / s     w = (wavelength x D) / s
  • Production of an interference pattern
    • White light is a mixture of all colours, each with a different wavelengths
    • All are diffracted by different amounts
    • Get a spectra of colour
  • Laser safety precautions
    • Never shine the laser towards someone
    • Wear safety goggles
    • Avoid shining laser at reflective surface
    • Have a warning sign on display
    • Turn laser off when not needed
  • Interference of sound and EM waves
    Sound waves
    • Two-source interference of waves with a measurable wavelength
    • Two coherent sources driven by the same oscillator
    Electromagnetic waves
    • End of 17th century, two theories of light were published
    • Newton - suggested light was made up of particles called corpuscles
    • Huygens - light as waves
    • Corpuscular theory - explains reflection and refraction but diffraction and interference are uniquely wave properties
    • Youngs double slit experiment provides evidence showing light can diffract and interfere
  • Diffraction pattern from a single slit
    Diffraction pattern
    • The slit is the same width as the wavelength
    • The bright central maximum with fringes
    Intensity - power per unit area Wm-2
    • Monochromatic - all photons have the same energy

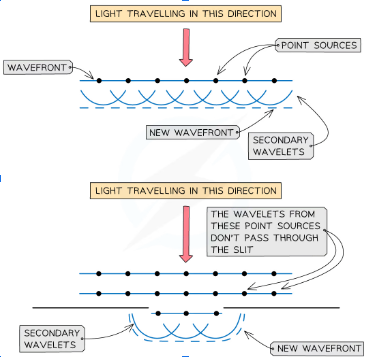

  • Huygens construction
    • Infinite sources of the wave
    • wavelength > gap size
    Width of central fringe maximum

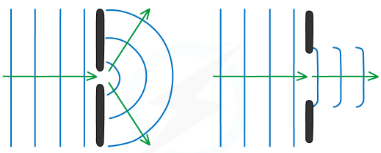

    • Bigger slit width then less diffraction then narrower but more intense central maximum
    • The central fringe has the greatest intensity
    • The intensity of the central fringe is significantly greater than the outer fringe
    • The central fringe has twice the width of subsequent fringes
    • w = (2Dxwavelength) / a
    • width of central fringe = (2 x distance from slit to screen x wavelength) / width of single slit
  • Transmission diffraction grating
    • For monochromatic light, all maxima are sharp lines
    • Line of maximum brightness at the centre - zero order line
    • Lines on either side are first-order lines

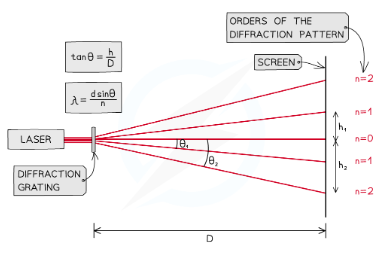

  • Derivation of nth order maximum equation
    • dsin(x) = n x wavelength
    • The angle between the incident beam and the nth-order maximum
    • First-order maximum happens at an angle when waves from one slit line up with waves from the next and are exactly one wavelength behind
    • Difference worked out using trigonometry
    • Other maxima occur when the path difference is 'n'
  • Conclusions
    • If the wavelength is greater, the angle is greater - the larger the wavelength, the more the pattern will spread out
    • If the slit spacing is greater, the angle is smaller - the coarser the grating, the less the pattern will spread out
    • Values of sin greater than 1 are impossible - for certain n you get a result of more than one so that order cannot exist
  • Identifying elements

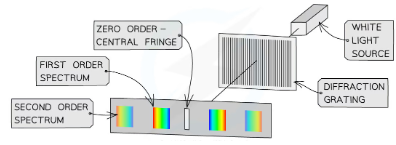

    • White light is a mixture of colours - diffracting white light through a grating gives a spectrum of colour
    • Each order in the pattern becomes a spectrum with red on the outside and violet on the inside
    • The zero-order maximum stays white because all wavelengths pass-through
    • The wavelength of x-rays is a similar scale to the spacing between atoms in crystalline solids - x-rays form a diffraction pattern when directed at a thin crystal
    • The crystal acts as a diffraction grating and spacing between atoms (slit width) can be found in pattern - x-ray crystallography
  • Refractive index
    • Light travels at different speeds in different materials
    • Refractive index (n) - the ratio of the speed of light in a vacuum to the speed of light in the material
    • n = sin(i) / sin(r)    n = c1 / c2
    • sin(i) / sin(r) = n2 / n1 = c1 / c2
    • The relative refractive index of air is 1
    • Relative refractive index - the ratio of the speed of light in two different materials
    • 1n2 = c1 / c2    1n2 = n2 / n1
    • Property of the interface between two materials - different for every pair
    • The absolute refractive index of a material is a property of that material only

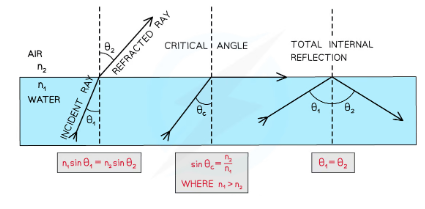

  • Snell’s law
    • Law of refraction
    • n1sin(x)1 = n2sin(x)2
    • Incident ray = reflection ray
    • The angle of incidence - the angle incoming light makes to the normal
    • The angle of refraction - the angle the refracted ray makes with the normal
    • When light enters an optically denser medium it is refracted towards the normal
  • Total internal reflection (TIR)
    • Only from more dense material to less dense material
    • Only when the refractive index of the first material is greater than that of the second
    • ni > nr
    • E.g. air to glass - bends towards the normal
  • Refraction vs. TIR
    • Light leaving an optically denser material is refracted away from the normal
    • Increasing the angle of incidence brings the angle of refraction closer to 90°
    • When the critical angle is reached, light is refracted along the boundary
    • sin(x)c = n2 / n1 =1n2
    • Beyond the critical angle, refraction is impossible and all the light is reflected into the material - TIR
  • Fibre optics and cladding
    Optical fibre - thin, flexible tube of glass/plastic fibre
    • Carries light signals over long distances and round corners
    • E.g. step-index optical fibres

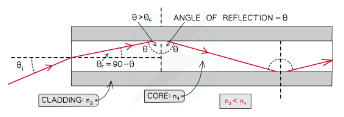

    Step-index optical fibres
    • Have a high refractive index
    • Surrounded by cladding with a lower refractive index
    • Allows for total internal reflection (TIR)
    • Protects fibre from scratches letting light escape
    • Light shone in at one end
    • Extremely narrow fibre
    • Light hits the boundary between fibre and cladding at an angle > critical angle
    • All light is TIR from boundary to boundary until it reaches the other end
  • Dispersion and absorption
    A signal (stream of pulses of light) travelling down an optical fibre can be degraded
    • Can cause loss of information
    Absorption - causes loss in amplitude
    • Energy is lost through absorption by the material of fibre
    • Reduces the amplitude of the signal
  • Dispersion - causes pulse broadening
    • Modal dispersion - light rays enter fibre at different angles so they take different paths
    • Rays take a longer path than those down the middle of the fibre
    • Single-mode fibre only lets light take one path reducing modal dispersion

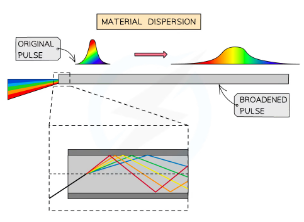

    • Material dispersion - light consists of different wavelengths travelling at different speeds
    • Some wavelengths reach the end of the fibre faster than others
    • Monochromatic light stops material dispersion
    Both types of dispersion lead to pulse broadening - the signal sent down the fibre is broader at the other end
    • Broadened pulses can overlap each other, confusing the signal
    Optical fibre repeater - boosts and regenerates signal every so often reducing signal degradation
