Light & electromagnetic spectrum

• What do arrows in ray diagrams represent?

  Direction of light travelling


• What is the normal in ray diagrams?

  The normal is an imaginary dashed line that is perpendicular to the surface.


• What is the incident angle?

  The angle of the entering ray.


• What is the reflected angle?

  The angle of the exiting ray.


• What is the relationship between the incident angle and the reflected angle?

  Incident angle equals reflection angle.


• From where are angles measured in ray diagrams?

  Angles are always measured from the normal.


• What happens to light when it enters a denser material?

  It bends towards the normal.
• What happens to light when it enters a less dense material?

  It bends away from the normal.
• What is total internal reflection (TIR)?

  TIR occurs when light passes from a denser medium into a less dense medium.


• What happens if the angle of incidence is equal to the critical angle?

  The refracted ray will pass along the boundary and not exit the medium.


• What is the critical angle?

  The unique angle for each two media at which TIR occurs.
• What happens for angles larger than the critical angle?

  The light internally reflects back into the denser medium.


• What are the outcomes when light passes from glass to air based on the angle of incidence?

  • If angle LESS than critical angle, light refracts away from normal.
  • If angle EQUAL to critical angle, light passes along boundary.
  • If angle MORE than critical angle, light reflects.


• What is specular reflection?

  Mirror reflection following the law of reflection for a smooth surface.


• What is diffuse reflection?

  Light hitting a rough surface is reflected at many angles.


• What does each color in visible light represent?

  Each color is a certain wavelength in visible light.


• What do all colors together make up?

  White light.
• Why do opaque materials appear to have a certain color?

  They reflect only that certain color light and absorb all other colors.
• What happens to colors when passing through color filters?

  All other colors are absorbed, and only a certain color is allowed to pass through.
• What is the focal length of a lens?

  The distance between the lens and the focal point.
• What is the focal point of a lens?

  The point where all horizontal rays meet after passing through the lens.


• How is the power of a lens defined?

  Power of the lens is the inverse of the focal length.


• What is the relationship between focal length and lens power?

  A shorter focal length results in greater power.

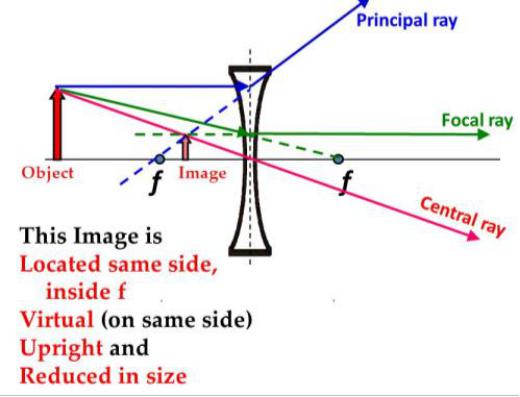

• What is a concave lens?

  A lens that caves inward and is thinner at the center than at the edges.


• What does a concave lens do to light?

  It spreads light outwards.


• How does light appear to behave when passing through a concave lens?

  Light appears to have come from the focal point.


• What is a practical use of concave lenses?

  They are used to correct short-sightedness.

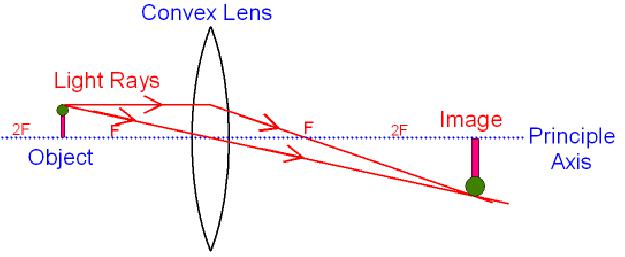

• What is a convex lens?

  A lens that is fatter at the center and focuses light inwards.


• What is the function of a convex lens?

  It focuses light inwards.


• What are some applications of convex lenses?

  They are used for magnifying glasses, binoculars, and to correct long-sightedness.


• What is a real image?

  An image produced at the opposite side of the lens to the object.


• What is a virtual image?

  An image that appears to come from the same side of the lens as the object.


• When does a virtual image occur?

  When the object lies closer to the lens than the focal point.

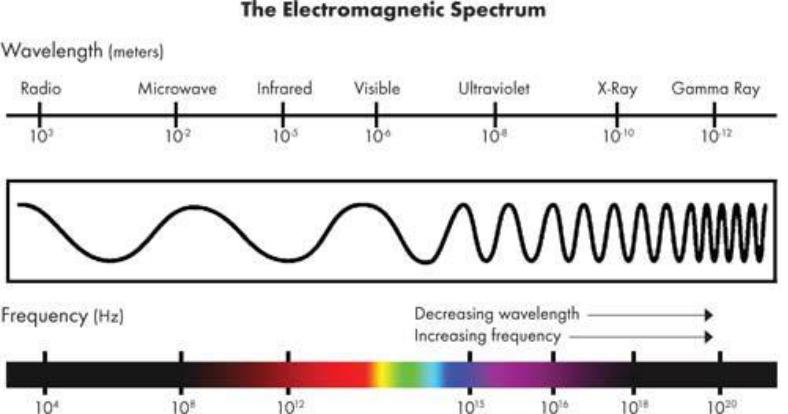

• What do all electromagnetic waves do?

  They transfer energy from a source to an observer.


• What type of waves are electromagnetic waves?

  They are transverse waves.
• What is the speed of electromagnetic waves in a vacuum?

  They all travel at the same speed in a vacuum.
• Do electromagnetic waves need particles to move?

  No, they do not need particles to move.
• How do materials interact with electromagnetic waves?

  Materials interact differently depending on the wavelength.


• What happens to the speed of electromagnetic waves as wavelength decreases?

  The speed remains constant in a vacuum.
• What happens to frequency as wavelength decreases?

  Frequency must increase.
