Electromagnetism

• When current flows through a wire, a magnetic field is induced.

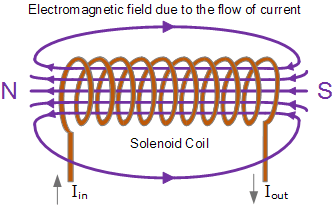

• A Solenoid is a coil of wire that produces a magnetic field.


• Increasing the strength of a Magnetic Field in a Wire:




  • Adding more coils
  • Use of an Iron core
  • Increase Current


• Electromagnets are used in doorbells and Cranes
• Aluminium is a conductor. It is NOT magnetic.

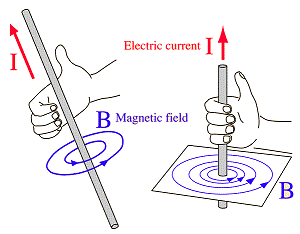

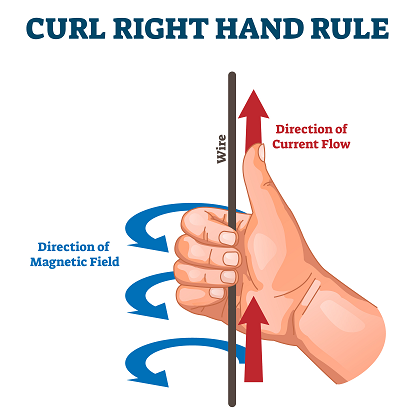

• Right-Hand Rule.

  A) Magnetic Field

  B) Current


• Solenoids are Strong and Uniform.
• If there is NO current, there is no magnetic field.
• If you reverse the direction of current, the direction of the magnetic field ALSO changes.


• The magnetic field is stronger closer to the wire.


• Electromagnets are useful because we can turn them on and off.
