Shapes of Molecules

• 4 bonding, no lone pairs


  Tetrahedral


• 3 bonding, 1 lone pair


  Trigonal pyramidal

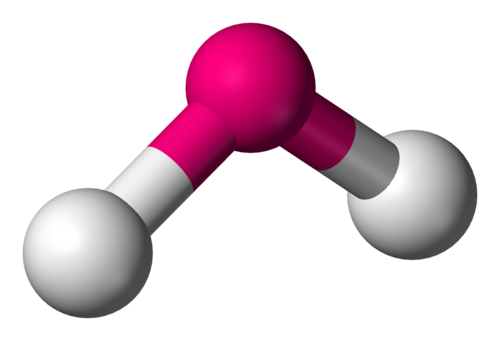

• 2 bonding, 2 lone pairs


  Bent

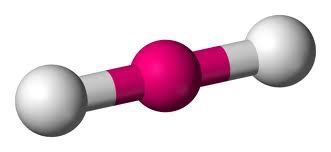

• 2 bonding, no lone pairs


  Linear


• 3 bonding, no lone pairs


  Trigonal planar


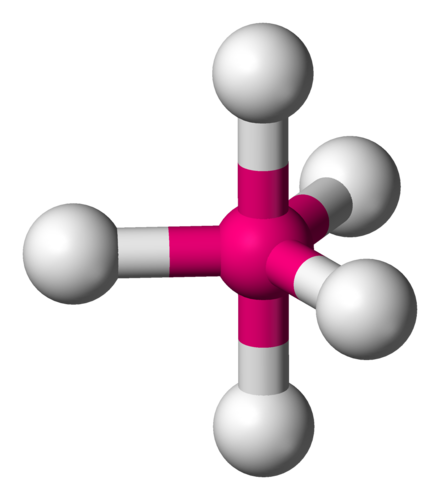

• 5 bonding, no lone pairs


  Trigonal bipyramidal


• 6 bonding, no lone pairs

  Octahedral


• Tetrahedral bond angle


  109.5


• Trigonal pyramidal bond angle


  107


• Bent bond angle

  104.5


• Linear bond angle


  180


• Trigonal planar bond angle

  120


• Trigonal bipyramidal bond angles


  90 and 120


• Octahedral bond angles

  90


• Electron pair repulsion theory


  A theory which explains the shapes of simple molecules by assuming that pairs of electrons around a central atom repel each other and thus take up positions as far away as possible from each other in space.


• 3 bonding pairs, 2 lone pairs


  T-shaped or trigonal planar


• 4 bonding pairs, 1 lone pair


  See-Saw


• 4 bonding pairs, 2 lone pairs


  Square planar


• 5 bond pairs, 1 lone pair


  Square based pyramid


• 4 bonding, no lone pairs


  Tetrahedral


• 3 bonding, 1 lone pair


  Trigonal pyramidal


• 2 bonding, 2 lone pairs


  Bent


• 2 bonding, no lone pairs


  Linear


• 3 bonding, no lone pairs


  Trigonal planar


• 5 bonding, no lone pairs


  Trigonal bipyramidal


• 6 bonding, no lone pairs


  Octahedral


• Tetrahedral bond angle


  109.5


• Trigonal pyramidal bond angle


  107


• Bent bond angle


  104.5


• Linear bond angle


  180


• Trigonal planar bond angle


  120


• Trigonal bipyramidal bond angles


  90 and 120


• Octahedral bond angles


  90


• Electron pair repulsion theory


  A theory which explains the shapes of simple molecules by assuming that pairs of electrons around a central atom repel each other and thus take up positions as far away as possible from each other in space.


• 3 bonding pairs, 2 lone pairs


  T-shaped or trigonal planar


• 4 bonding pairs, 1 lone pair


  See-Saw


• 4 bonding pairs, 2 lone pairs


  Square planar


• 5 bond pairs, 1 lone pair


  Square based pyramid


• What theory is used to determine the shape of molecules?


  Valence Shell Electron Pair Repulsion (VSEPR) theory
• What is the key principle behind VSEPR theory?


  Electron pairs repel each other and arrange themselves as far apart as possible to minimize repulsion
