Electric Fields

Cards (8)

  • Coulomb's Law
    magnitude of force between two point charges is directly proportional to product of their charges and inversely proportional to square of the distance
  • Comparing the two
    electrostatic force > gravitational force
    for subatomic particles
    because they have greater charges in comparison to their masses
  • Electric field strength
    • force per unit charge experienced by an object in an electric field
    • constant in uniform field
    • varies in radial field

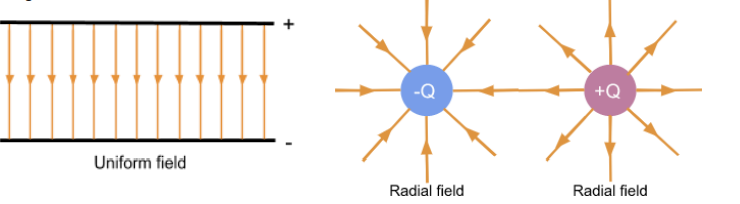

  • Uniform and radial fields
    • uniform field exerts same electric force everywhere
    • radial field depends on distance between the two charges
  • Uniform electric fields
    -can sometimes be used to determine whether a particle is charged
    -if it is charged it will experience a constant electric force either in or opposite the direction of the field, causing particle to accelerate and so it follows a parabola
  • Absolute electric potential
    the potential energy per unit charge of a positive point charge at that point in the field
    • greatest at the surface of a charge and as the distance from the charge increases, the potential decreases, so electric potential at infinity is zero
  • Electric potential
    • can be negative or positive, depending on the sign of the charge
    • charge = positive, potential = positive, force= repulsive
    • charge = negative, potential = negative, force = attractive
  • Electric potential difference
    the energy needed to move a unit charge between two points
