Describing Wave Motion

• Describing Wave Motion

  • When describing wave motion, there are several terms which are important to know, including:
  • Amplitude
  • Wavelength
  • Frequency
  • Period
• Amplitude

  • Amplitude is defined as:The distance from the undisturbed position to the peak or trough of a wave
  • It is given the symbol A and is measured in metres (m)
  • Amplitude is the maximum or minimum displacement from the undisturbed position
• Wavelength

  • Wavelength is defined asThe distance from one point on the wave to the same point on the next wave.
  • In a transverse wave:
  • The wavelength can be measured from one peak to the next peak
  • In a longitudinal wave
  • The wavelength can be measured from the centre of one compression to the centre of the next
• Wavelength

  • The wavelength is given the symbol λ (lambda) and is measured in metres (m)
  • The distance along a wave is typically put on the x-axis of a wave diagram

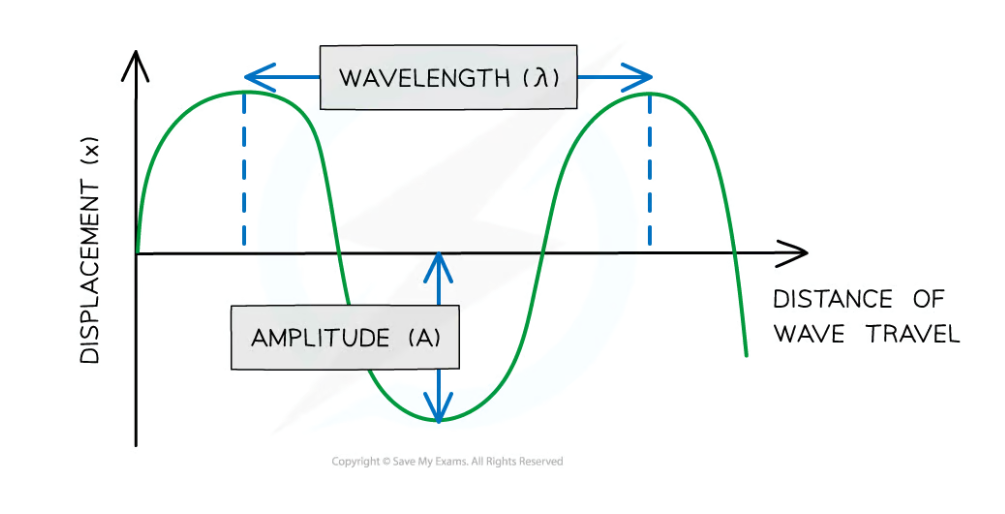

• Diagram showing the amplitude and wavelength of a wave:


• Frequency

  • Frequency is defined as:The number of waves passing a point in a second
  • Frequency is given the symbol f and is measured in Hertz (Hz)

  Time Period

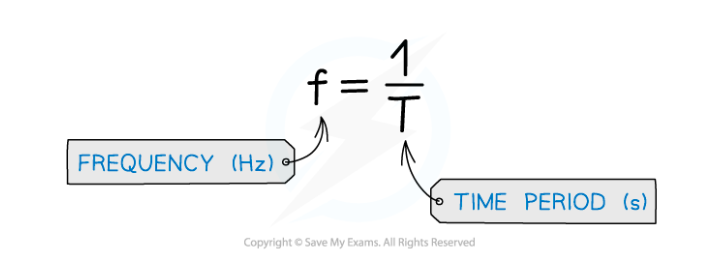

  • The time period of a wave is defined as:The time taken for a single wave to pass a point
  • This can also be stated as The time taken for one full cycle of a wave
  • The time period is given the symbol T and is measured in seconds (s)
• • On a graph, this can be seen by the time taken for a complete wavelength, if the horizontal axis is time

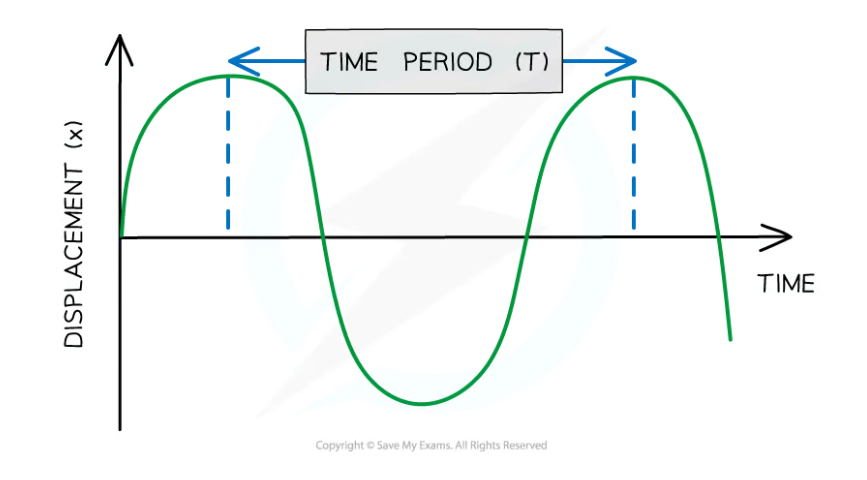

• Diagram showing the time period of a wave
