Switch
A device for making and breaking the connection in an
electric circuit
.
View source
Cell
A device used to generate current, in which chemical energy is converted into electricity and used as a source of power.
View source
Battery
A container consisting of one or more
cells
, in which chemical energy is converted into electricity and used as a source of power.
View source
Diode
A device that permits current to flow through it in only one direction.
View source
Resistor
A device used to introduce some amount of
resistance
into a circuit.
View source
Variable Resistor
A resistor whose
resistance
can be changed.
View source
LED
Light-emitting diode
. An electronic device that conducts current in one
direction
only and illuminates when it is conducting.
View source
Lamp
A light source produced by
resistance
.
View source

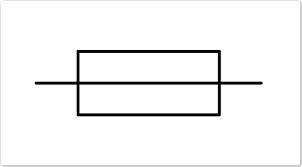

Fuse
A safety device consisting of a strip of wire that melts and breaks an
electric
circuit if the
current
exceeds a safe level.
View source
Voltmeter
A device used to measure
voltage
(potential difference) around a
component
. Always placed in parallel with the component.
View source
Ammeter
A device used to measure
current
in a circuit. Always placed in
series
.
View source
Thermistor
A resistor that changes its
resistance
with a change of temperature.
View source

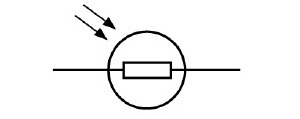

LDR
Light dependent resistor, a resistor whose value of
resistance
can change as the
intensity
of the light falling on it changes.
View source
