Both positive and negative ions at the ions isoelectric point (The pH where the average overall charge is 0)
Zwitterion at different pH levels
Low pH: The COO- will accept a H+
High pH: The NH3+ will lost a H+
TLC method
Separate and identify amino acids as they have different solubilities
Stationary phase of silica of alumina mounated on a glass/metal plate. A pencil base line is drawn and drops of amino acid mixtures are added
Place the plate in a solvent below the pencil line so amino acids dont dissolve
Leave until solvent has moved up to near he top of the plate, remove and mark the solvent front
Lower down on the chromatogram are less soluble
TLC analysis
Fluroscent dyes and UV light: Adding a fluroescent dye to the silicia/alumina can be seen using UV, colourless spots will block any glow from the fluorescent dye, which are then drawn around to mar where they are
Iodine/ninhydrin: Place chromatogram in a sealed jar with a few iodine crystals, iodine vapour sticks to chemicals and dyes them purple; locating agent
Rf values
Identify the amino acids
N.o.spots tell you how many amino acids make up the mixture
Distance travelled by spot/Distance travelled by solvent
Compare value to a data book, same temperature solvent and TLC make up must be used
Proteins
Polymers made up of amino acid monomer units, condensation polymer

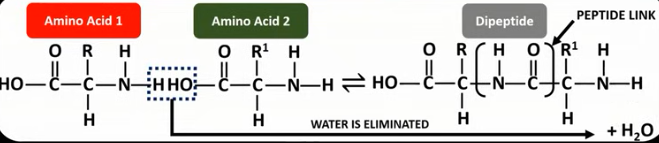

Peptide link
Broken down via hydrolysis
2 amino acids = dipeptide
6 moldm3 HCl, 110 degrees and reflux for hydrolysis
Proteins structure
Primary: Sequence of amino acids that make up the protein
Secondary: Hydrogen bonds which determine an alpha helix or beta pleated sheet
Tertiary: unique shape of protein determined by ionic bonds, hydrogen bonds and disulfide bridges; changed by temperature and pH
Enzymes
Biological catalysts that speed up chemical reactions
Enzymes have an active site in their tertiary structure which will be complementary to the substrate
Enzymes are stereospecific as they have chiral centres (Only one enantiomer is complementary)
Inhibitors can block active site of a substrate and slow rate of reaction, will also be complementary to the active site: depending on concentration and how strongly the inhibitor binds
Antibiotics
Will work as an inhibitor by blocking the active site of the enzyme that is responsible for making the cell wall of a bacteria cell, if this cant be formed the bacteria will burst and die.
DNA
Polymer that is made up of nucleotides
2 polynucleotide strands are twisted together to form a double helix, held together by hydrogen bonds
Nucleotides
Made up of a: Phosphate group, 2-deoxyribose group and a nitrogenous base (ATCG)

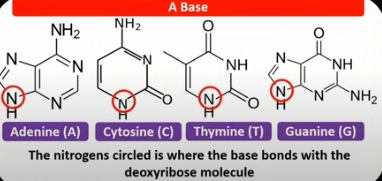

Bottom NH on each base is what bonds with deoxyribose
What provides strength to the DNA

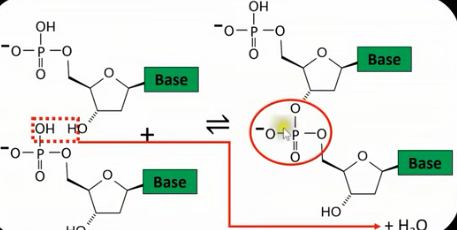

Sugar phosphate backbone which is covalently bonded (Phosphodiester bond) to join nucleotides using condensation polymerisation and protects the nitrogenous bases

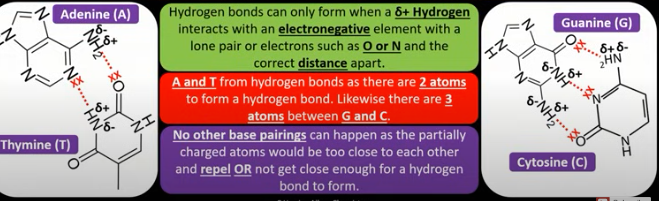

Which bases bond together and what is the number of hydrogen bonds
AT; 2 bonds
CG; 3 bonds
Cis-platin
Anti-cancer drug with a square planar complex
Cancer is uncontrollable multiplication of cells, replicating DNA
Cis-platin binds to DNA in cancer cells and prevents reproduction of DNA
Chloride is displaced and platinum binds to guanine base causing distortion which casues DNA to be unable to unwind
Cis-platin can also prevent healthy cells from reproducing, supressing the immune system and increasing risk of infection and kidney damage
Reduced through lower doses and targeted deliveries directly to tumours
