lenses and magentiam

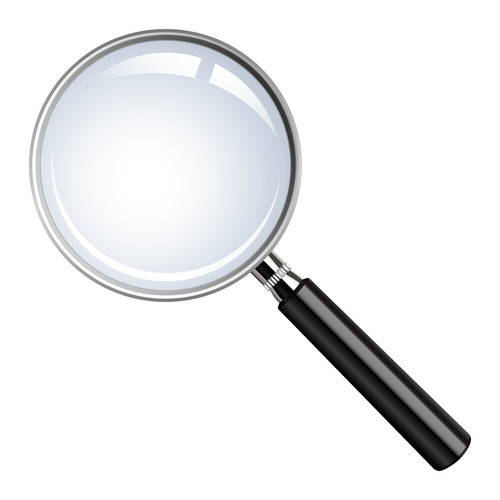

• Lens


  A shaped piece of transparent glass or plastic that forms an image by refracting light


• Convex (converging) lens


  A lens that is thicker in the middle than it is at the edges and causes light rays to converge


• Concave (diverging) lens


  A lens that is thinner in the middle than it is at the edges. and causes light rays to diverge


• Converge


  When light rays move together to meet at a common point
• Diverge


  When a light ray splits up or spreads out
• Principal focus (focal point)

  The focus of a lens where light rays appear to converge or to diverge from

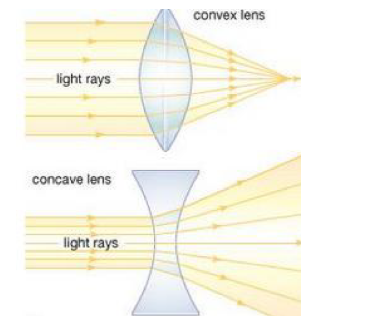

• How a convex lens works

  Parallel rays of light move together and are brought to a focus at the principal focus


• How a concave lens works

  Parallel light rays spread out and separate but appear to come from a principle focus on the other side of the lens


• Focal length


  The distance from the lens to the principal focus

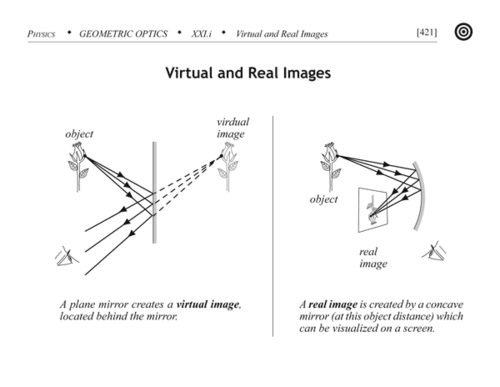

• Real image


  An image that can be projected onto a screen


• Virtual image


  An image that appears to come from behind the lens


• Type of image formed by convex lens

  Real or virtual


• Type of image formed by concave lens

  Always virtual
• Magnification


  A measure of the size of an image compared to the size of the object


• Equation for magnification


  magnification = image height / object height


• Units for magnification


  Magnification is a ratio so has no units but both heights should be measured using the same unit
