properties of alpha beta + gamma

• Relative mass and charge of a alpha particle

  Mass = 4 and charge = +2


• Relative mass and charge of a beta-minus particle

  Mass = approx. 1/2000 and charge = -1


• Relative mass and charge of a beta-plus particle

  Mass = approx. 1/2000 and charge = +1


• Relative mass and charge of a gamma ray

  Mass = 0 and charge = 0


• Ionising power


  The ability to ionise materials
• Ionising power of an alpha particle

  Highly ionising
• Ionising power of a beta particle

  Moderately ionising
• Ionising power of a gamma ray

  Weakly ionising
• Penetrating power


  The ability to penetrate (pass through) matter


• Penetrating power of an alpha particle

  Weakly penetrating


• Penetrating power of a beta particle


  Moderately penetrating


• Penetrating power of a gamma ray

  Strongly penetrating

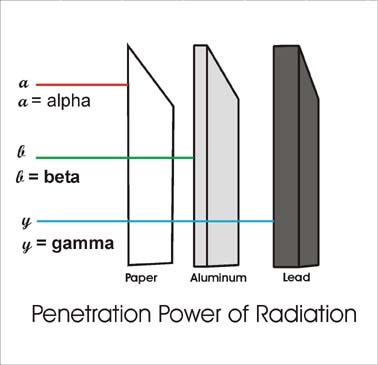

• Materials that stop alpha particles

  Skin or paper


• Materials that stop beta particles

  A few millimetres (mm) of aluminium


• Materials that stop gamma rays

  Several centimetres (cm) of lead or about 1 metre (m) of concrete


• Range (in air)


  How far nuclear radiation can travel in air before it is absorbed
• Range of an alpha particle

  Less than 5 centimetres (cm)
• Range of a beta particle

  About 1 metre (m)
• Range of a gamma ray

  Over 1 kilometre (km)
