Mains electricity

• Alternating potential difference


  A potential difference that continually reverses its direction


• Direct potential difference


  A potential difference that only acts in one direction


• Alternating current (ac)


  An electric current which flows consistently in one direction around a circuit


• Direct current (dc)


  An electric current that continually reverses direction and changes size


• Sources of ac (alternating current)

  Power stations, ac generators, dynamos

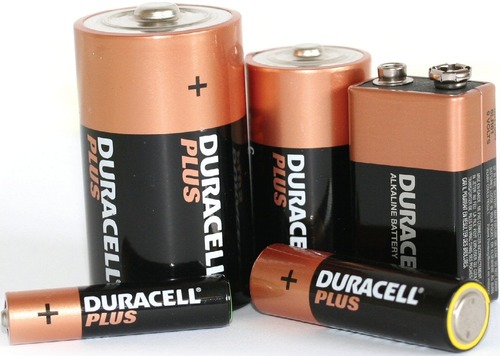

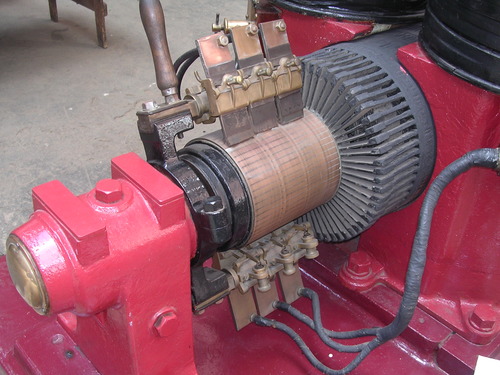

• Sources of dc (direct current)

  Cells, car batteries, solar cells, dc generators

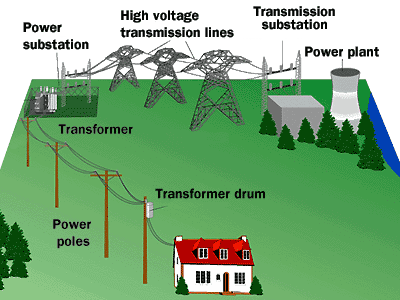

• Mains electricity


  An ac supply of electricity which is generated in power stations or by renewable energy resources


• Domestic electricity supply


  The electricity that is delivered to houses


• 230 V


  The potential difference of domestic electricity supply in the UK


• 50 Hz


  The frequency of domestic electricity supply in the UK


• Frequency


  when used to describe electricity, it is the number of times that an ac current changes direction from positive to negative to positive again


• Hertz (Hz)


  The SI unit for frequency

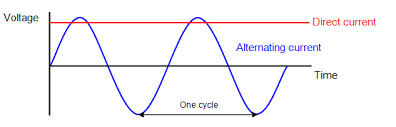

• Pd (potential difference)-time graph

  A graph used to display the variance of potential with time for alternating and direct current


• Dc (direct current) on a pd-time graph

  Direct current produces a straight, horizontal line at a constant potential difference


• Ac (alternating current) on a pd-time graph

  Alternating current produced a curve which alternates between positive and negative potential differences
