Static charges

• Charge


  A property of matter that causes a non-contact force to be exerted when two charged objects are brought together

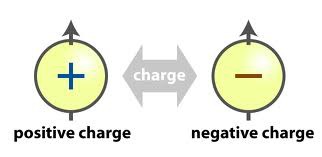

• Two types of charge

  Positive and negative


• Like charges


  Repel each other


• Opposite charges


  Attract each other


• Charge on an atom

  Atoms are neutral because they contain equal numbers of positively and negatively charged particles


• Charge on a proton

  A proton carries a positive charge (+1)


• Charge on a neutron

  A neutron carries no charge


• Charge on an electron

  An electron carries a negative charge (-1)


• Ion


  An atom (or molecule) with an overall electric charge due to losing or gaining one or more electrons


• Positively charged ion


  An atom (or molecule) that has lost one or more electron


• Negatively charged ion


  An atom (or molecule) that has gained one or more electron


• Static electricity


  A build up of electric charge on an insulated object due to friction or induction

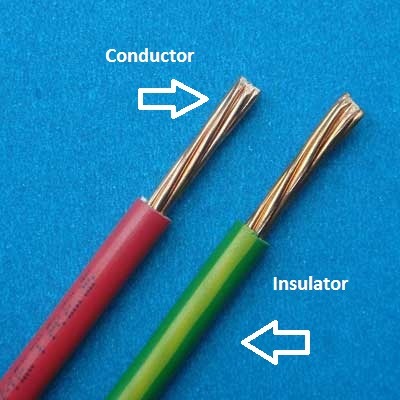

• Insulator


  A material that does not allow charge or heat to easily pass through it

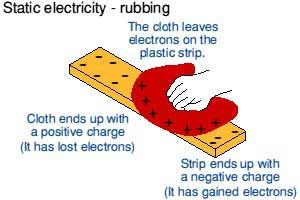

• Charging by friction


  When certain insulating materials are rubbed against each other and become electrically charged; negatively charged electrons are rubbed off one material and on to the other


• How a material becomes negatively charged

  It gains electrons


• How a material becomes positively charged

  It loses electrons
