Transformers

• Transformer


  A device that can increases or decreases the potential difference (voltage) of an alternating current

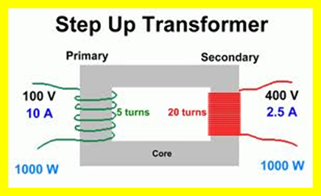

• Step-up transformer


  Increases the potential difference by having more turns on the secondary coil

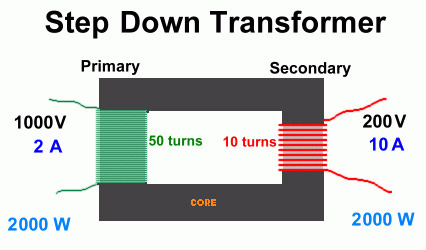

• Step-down transformer


  Decreases the potential difference by having fewer turns on the secondary coil

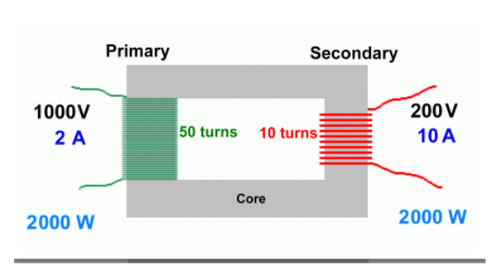

• Structure of a basic transformer

  Consists of a primary coil and a secondary coil wound on an iron core


• Why iron is used for the core of a transformer

  Iron is easily magnetised and demagnetised
• Why transformers are supplied with alternating current

  So that magnetic field produced in the primary coil is continually changing
• V(1)/V(2) = N(1)/N(2)


  The equation linking the ratio of the potential differences to the ratio of the number of turns on each coil


• V(1)


  The symbol for potential difference across the primary coil


• V(2)


  The symbol for potential difference across the secondary coil


• N(1)


  The symbol for number of turns on the primary coil


• N(2)


  The symbol for number of turns on the secondary coil


• Volts (V)


  The SI unit for potential difference (voltage)
