Current

Cards (23)

  • Current - the amount of charge passing a point in a circuit every second
    • charge per second
  • I = Q/t
    • Q - charge (measured coulombs, C)
    • I - current (measured in amperes, A)
  • Electric current - the flow of charge between two oppositely charged conductors that are connected together (by a length of wire)
    • The greater the flow of charge, the greater the electric current

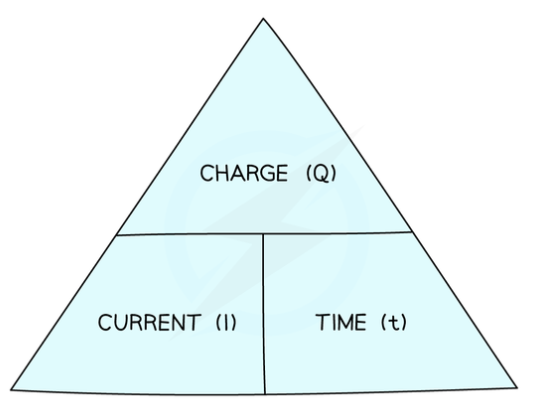

  • Current formula triangle
    A) charge
    B) current
    C) time

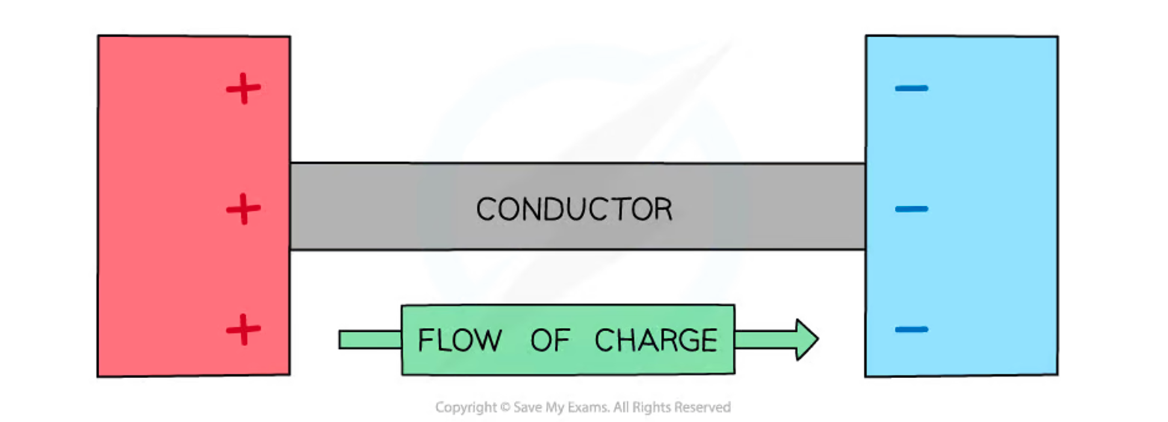

  • Electric current diagram
    A) conductor
    B) flow of charge
  • Current can be direct current (dc) or alternating current (ac)
    • In terms of calculations they can be treated in the same way

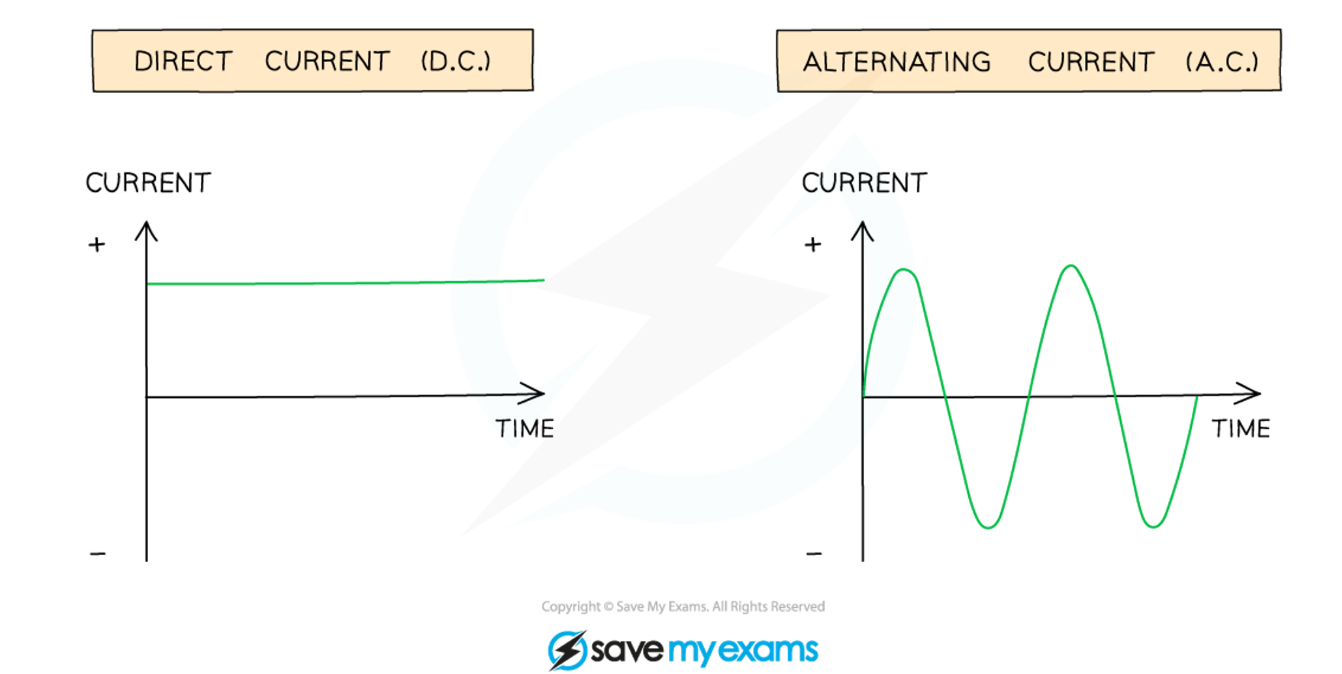

  • DC vs AC
    A) direct
    B) dc
    C) alternating
    D) ac
  • Direct current (D.C) - produced when using dry cells and batteries (and sometimes generators, although these are usually ac)
    • The electrons flow in one direction only, from the negative terminal to the positive terminal
  • Dry cells - a type of electric battery
  • Alternating current - typically comes from mains electricity and generators
    • The direction of electron flow changes direction regularly
    • A typical frequency for the reversal of AC current in mains electricity is 50 Hz
  • If asked to explain the difference between alternating and direct current, sketch the graphs
  • Current is measured using an ammeter
    • Ammeters - measure the amount of charge passing through them per unit time
    • Ammeters should always be connected in series with the part of the circuit you wish to measure the current through as measures the amount of charge passing through it
  • Ammeters can be either
    • Digital (with an electronic read out)
    • Analogue (with a needle and scale)
  • Analogue ammeters - typical ranges are 0.1-1.0 A and 1.0-5.0 A
    • Always double check exactly where the marker is before an experiment, if not at zero, you will need to subtract this from all your measurements
    • Always read the meter from a position directly perpendicular to the scale
  • Zero errors - when a measuring system gives a false reading when the true value fo the measured quantity is 0
  • Parallax error - an error in a reading caused by not reading at eye level
  • Digital ammeters - measure very small currents, in mA or µA
    • Shows the measured values as digits and are more accurate than analogue displays
    • Easy to use because they give a specific value and are capable of displaying more precise values
  • Digital displays may 'flicker' back and forth between values and a judgement must be made as to which to write down
    • should be checked for zero error
    • Make sure the reading is zero before starting an experiment, or subtract the “zero” value from the end results

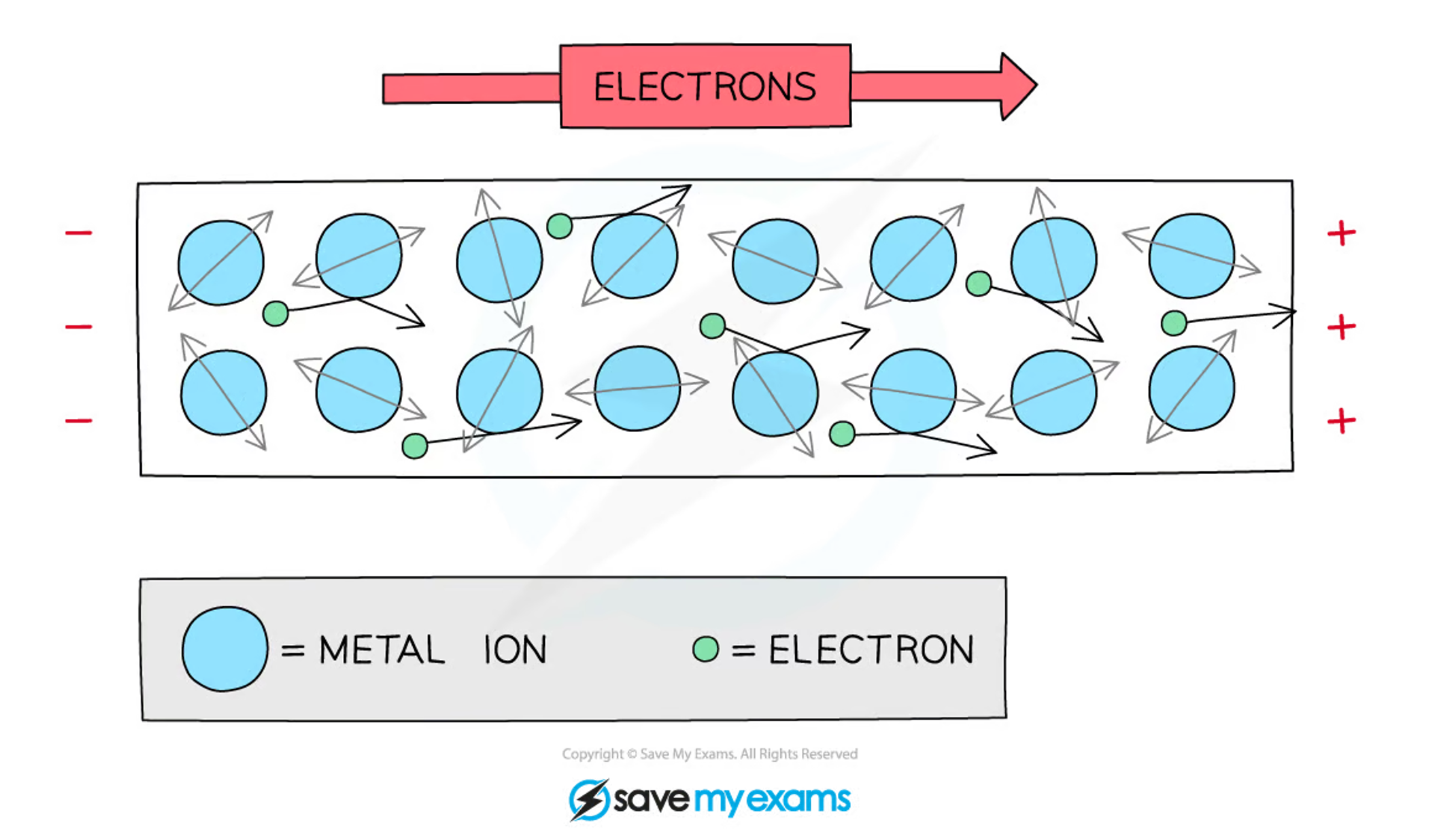

    • In a metal, current is caused by a flow of delocalised electrons
    A) electrons
    B) metal ion
    C) electron
  • Electrons are negatively charged
    • This means that the electrons flow from negative to positive but conventional currents are still defined as going from positive to negative

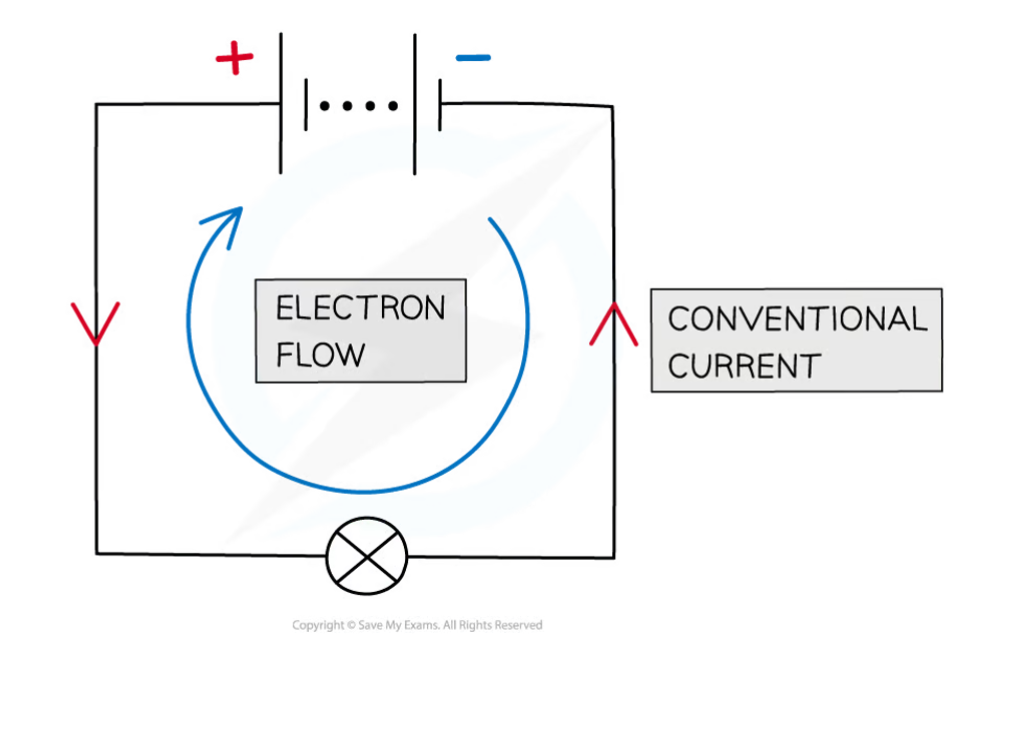

  • Actual electron flow vs conventional current
    A) electron flow
    B) conventional current
  • Define electrical current
    charge passing a point per unit time.
