AC Generator

Cards (6)

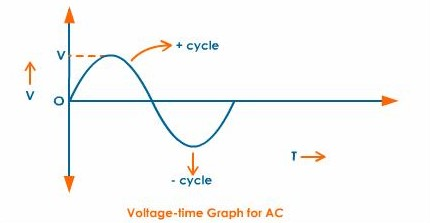

  • Each side of the coil travels upwards then downwards then upwards etc. so the current flows backwards then forwards then backwards etc. so it is an alternating current.
  • When the coil is rotated, it cuts magnetic field lines, so an EMF is generated, which makes a current flow.

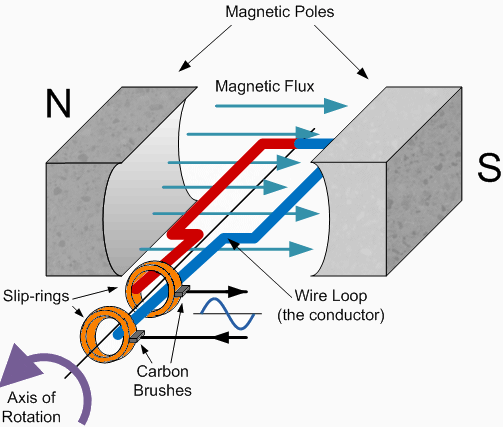

  • The brushes are 2 contacts which rub against the slip rings and keep the coil connected to the outside part of the circuit, usually made of carbon.
  • The coil is made of insulated copper wire and is rotated by turning the shaft; the slip rings are fixed to the coil and rotate with it.
  • The current is maximum when the coil is horizontal since field lines are being cut at the fastest rate and 0 when the coil is vertical, since it is cutting NO field lines.
  • The EMF can be increased by:
    • increasing the number of turns on the coil
    • increasing the area of the coil
    • using a stronger magnet
    • rotating the coil faster
