Sub-topic #1: Parts of an Analytical Balance

• Balance Plate (Pan)

  • Used as a container to put the sample of material to be measured in mass.
• Weights

  • Enables the calibration of analytical scales
• Weights

  • The mass of the material being the weights is precisely made so that the balance calibration remains accurate.
• Power Button

  • Used to turn the balance on or off.
• Tare Button

  • Used to rebalance the system and bring it back to neutral (zero).
• Mode Button

  • Configures the measurement conversion system such that the conversion system can be changed as necessary.
• Draft Shields

  • A plastic or glass enclosure with doors that allows access to the pan.
• Draft Shields

  • Protects against air currents that may affect the measurements.
• Level Adjustment Feet

  • Enables the balance to be brought to the reference position.
• Level Adjustment Feet

  • Moveable legs.
• Level Adjustment Feet

  • The leveling bubble, spirit level, or plumb bob determines the reference position.
• Level Indicator

  • Checks the balance in level.
• Display Panel

  • Displays various information such as results, errors, information for function settings, and function in progress.

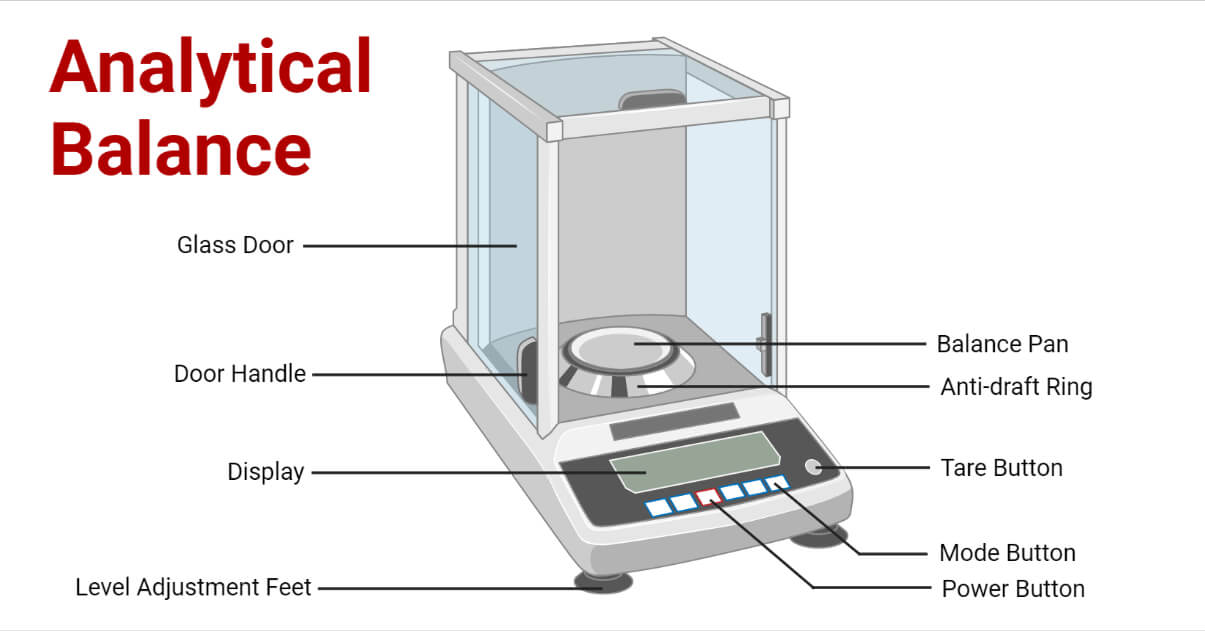

• Parts of Analytical Balance

  A) Glass Door

  B) Door Handle

  C) Display

  D) Level Adjustment Feet

  E) Balance Pan

  F) Anti Draft Ring

  G) Tare Buttton

  H) Mode Button

  I) Power Button
